Removal And Installation: Removal

WARNING: This page is about a different car, the 2016 Land Rover LR4, 2015 Land Rover LR4, and 2014 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • After carrying out repairs, the fuel system must be checked visually for leaks. Failure to follow this instruction may result in personal injury.
  • After the fuel tank drain is complete always fit the sealing covers over the drain ports. Failure to do so will mean that fuel vapor can escape.
  • This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
CAUTION: Make sure the workshop area in which the vehicle is being worked on is as clean and as dust free as possible. Foreign matter from work on clutches, brakes or from machining or welding operations can contaminate the fuel system and may result in later malfunction.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions .
  2. Disconnect the battery ground cable.

    Refer to: Specifications .

  3. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  4. Refer to: Fuel Tank Draining .

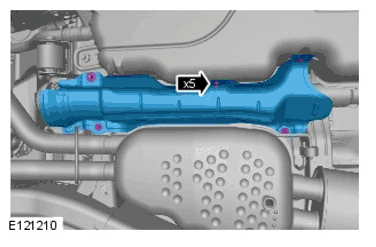

  5. G11600414

    Torque Specifications:

    Bolts 6 Nm

    Nuts 3 Nm

  6. NOTE: Discard the retaining clip.

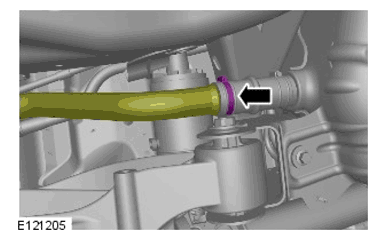

    G11600416

    Remove the tamper proof cover.

  7. CAUTION: Make sure that all openings are sealed. Use new blanking caps.

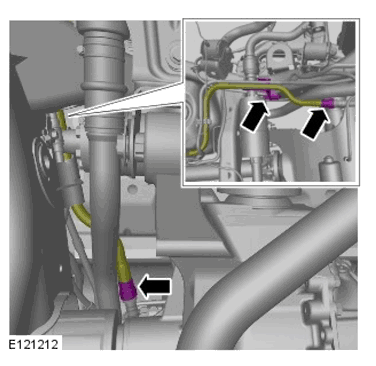

    G11600417
  8. CAUTION: Make sure that all openings are sealed. Use new blanking caps.

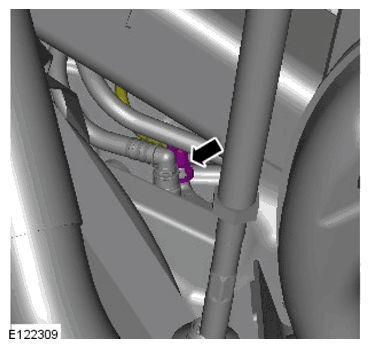

    G11600493
  9. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    NOTE: Transmission support heat shield shown removed for clarity.

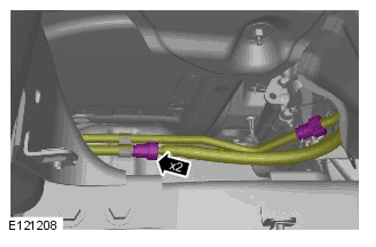

    G11600494

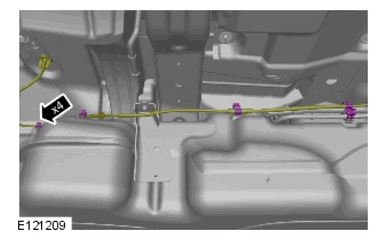

  10. G11600415
  11. WARNING: Secure the component to the transmission jack.
    CAUTION: Do not lower the fuel tank more than 250 mm.
    NOTE: Note the orientation of the two rear retaining bolts and washers.

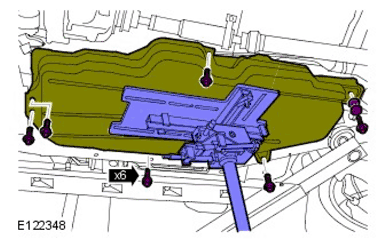

    G11600419

    Using a suitable transmission jack, lower the fuel tank sufficiently only to access the top of the fuel tank.

    General Equipment:  Transmission jack

    Torque Specification: 45 Nm

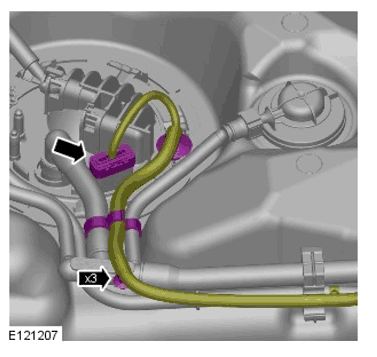

  12. G11600421
  13. CAUTION: Position the breather hose and vent hose through the vehicle body during the fuel tank removal operation.
    NOTE: Do not disassemble further if the component is removed for access only.

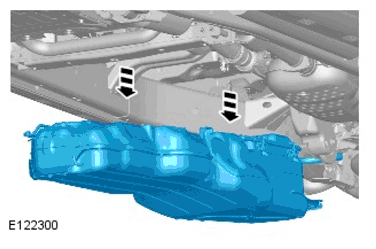

    G11600422

    With assistance, remove the fuel tank.

  14. CAUTION: Make sure that all openings are sealed. Use new blanking caps.

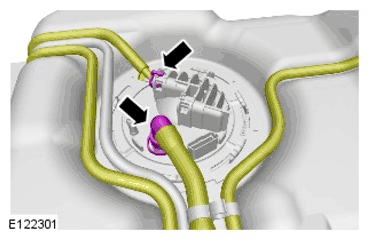

    G11600499
  15. NOTE: Note the position of the locating tang.

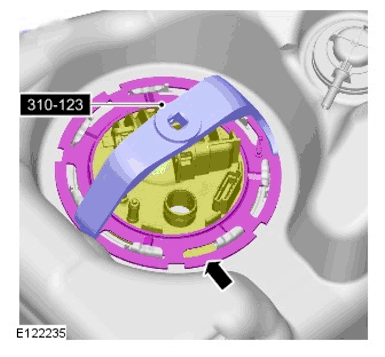

    G11600424
    • Special Tool(s):  310-123
  16. CAUTION: Be prepared to collect escaping fuel.
    NOTE: Remove and discard the O-ring seal.

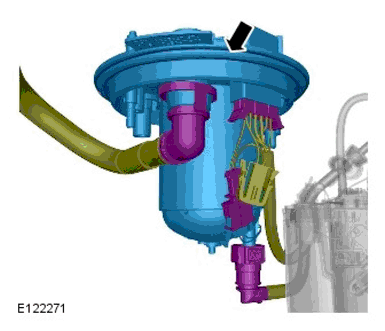

    G11600501
  17. CAUTION: Take extra care not to damage the fuel tank level sensor float and arm.
    NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

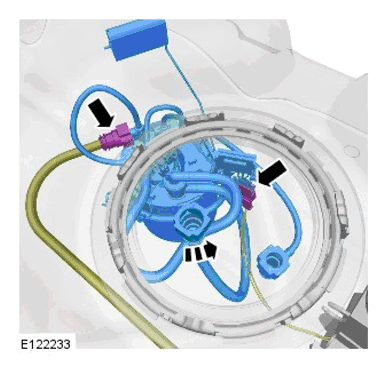

    G11600426
  18. CAUTION: Take extra care not to damage the fuel tank level sensor float and arm.

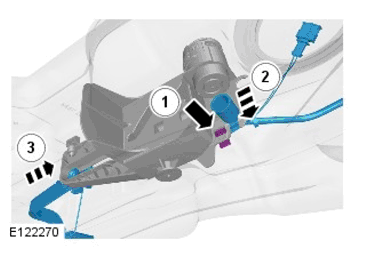

    G11600428
  19. CAUTION: Take extra care not to damage the fuel tank level sensor float and arm.

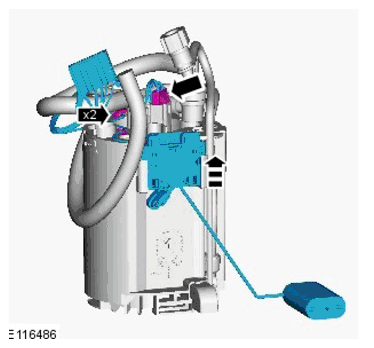

    G11600427
  20. G11600429
