Removal And Installation: Removal

WARNING: This page is about a different car, the 2016 Land Rover LR4, 2015 Land Rover LR4, and 2014 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Specifications
  2. Refer to: Engine Cover - V6 S/C 3.0L Petrol
  3. refer to: Left Air Cleaner
  4. G11601289
  5. CAUTION:
    • Be prepared to collect escaping coolant.
    • Make sure that all openings are sealed. Use new blanking caps.
    NOTE: Clamp both auxiliary coolant pump coolant hoses to minimize coolant loss.
    G11601290
  6. CAUTION: Be prepared to collect escaping coolant.
    G11601291
  7. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  8. G11601292
  9. G11601293
  10. G11601248

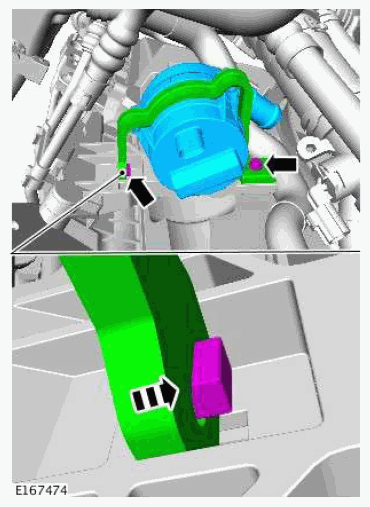

  11. G11601295
