Turbocharger Cooling
WARNING: This page is about a different car, the 2018 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

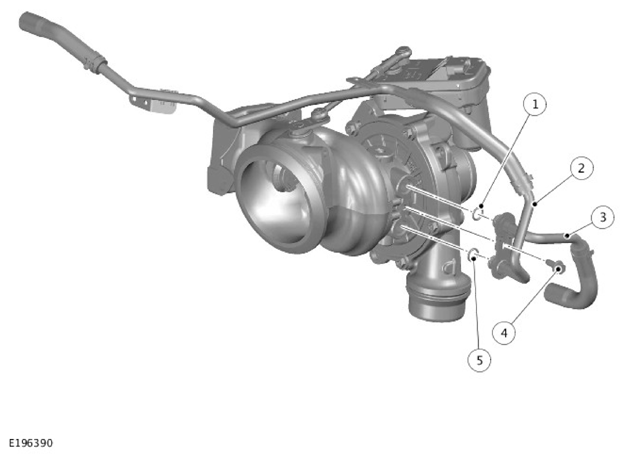

| ITEM | DESCRIPTION |
|---|---|
| 1 | O-ring seal |
| 2 | Coolant supply pipe |
| 3 | Coolant return pipe |
| 4 | Bolt |
| 5 | O-ring seal |
The turbocharger also requires a supply from the engine coolant system to assist with the cooling due to the high loads on the turbocharger. A pipe connection from the engine routes engine coolant through the body of the turbocharger bearing housing. Once the coolant has passed through the bearing housing it is returned to the cooling system.
