Fuel Pump Module
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

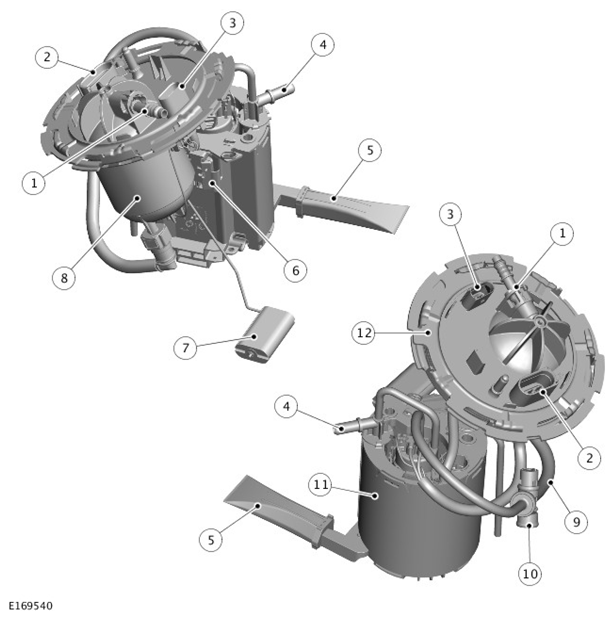

| ITEM | DESCRIPTION |
|---|---|
| 1 | Flange fuel pressure outlet connector |
| 2 | Electrical connector 4 pin |
| 3 | Electrical connector 3 pin |
| 4 | Sucking jet connector |
| 5 | Fuel pick up filter |
| 6 | Fuel t level sensor 'A' |
| 7 | Fuel Level sensor 'A' float |
| 8 | Fuel filter |
| 9 | Pipe - fuel pump supply to filter |
| 10 | Pressure relief valve |
| 11 | Fuel pump module |
| 12 | Flange locking ring and seal |
The fuel pump is a variable speed rotary vane type. The pump is energized by the fuel pump relay which is located in the RJB and the FPDM which is located on a bracket at the right end of the evaporative emissions canister. The relay and the FPDM are controlled by the ECM.
A fine mesh filter is located in the lower section of the fuel pump module. This provides filtration to the fuel as it is drawn into the fuel pump module. A winged filter on the fuel pump that gives additional protection and a life time fuel filter integrated into the flange which eliminates the need for an additional filter further downstream in the fuel system.
The fuel level sensor 'A' is mounted on the fuel pump module housing.
