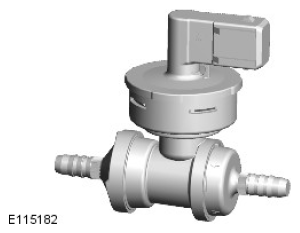

Brake vacuum sensor

G11589514

A brake vacuum sensor is introduced on Stop/Start vehicles to monitor vacuum reserves in the brake servo. The vacuum sensor is mounted in the vacuum pipe and hardwired to the Engine Control Module (ECM).

For additional information, refer to: Starting System - GTDi 2.0L Petrol
