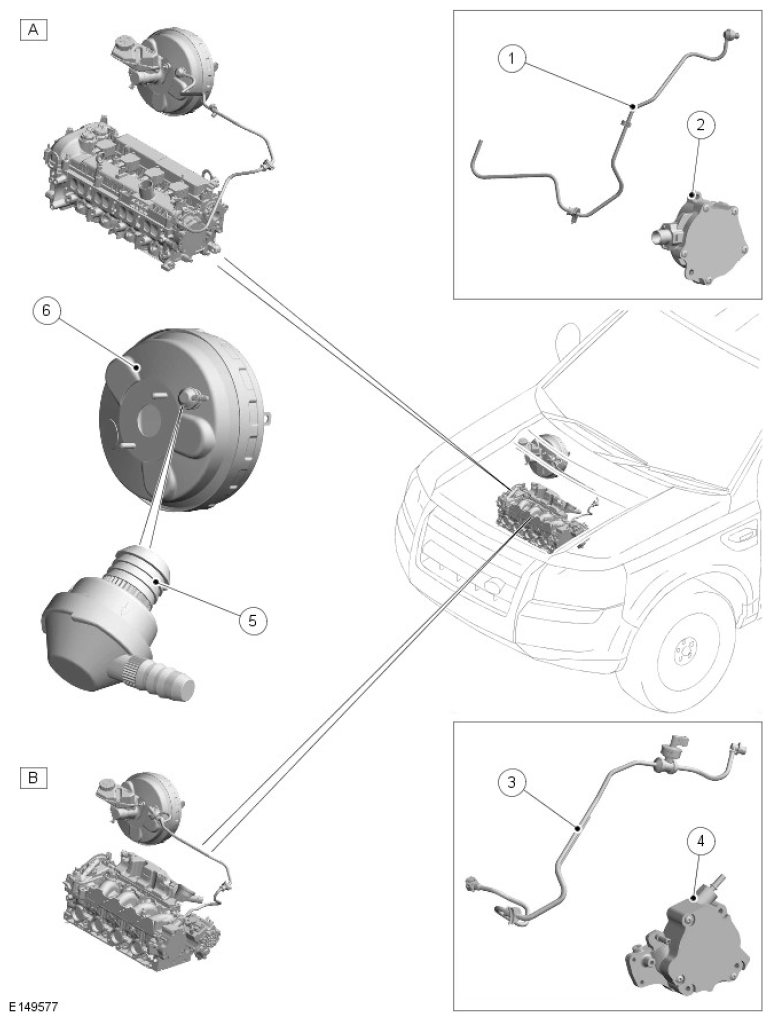

Component Location
NOTE:
Right-Hand Drive (RHD) shown; Left-Hand Drive (LHD) similar.
| ITEM | DESCRIPTION |
|---|---|
| A | Power Brake Actuation component location - 2.0 GTDi 2.0L Petrol engine |
| B | Power Brake Actuation component location - TD4 2.2L Diesel engine |
| 1 | Vacuum pipe - 2.0 GTDi 2.0L Petrol engine |
| 2 | Vacuum pump - 2.0 GTDi 2.0L Petrol engine |
| 3 | Vacuum pipe - TD4 2.2L Diesel engine |
| 4 | Vacuum pump - TD4 2.2L Diesel engine |
| 5 | Check valve |
| 6 | Brake booster |
