Fuel Pump And Sensor Unit (G1086686): Removal

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: Fuel System Pressure Release - V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (General Information, General Procedures).

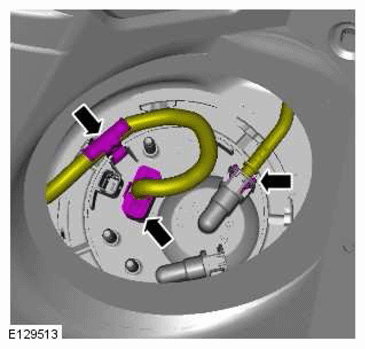

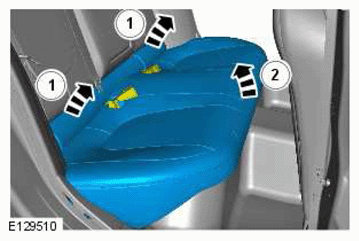

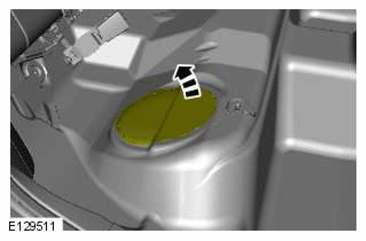

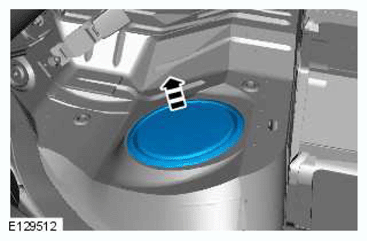

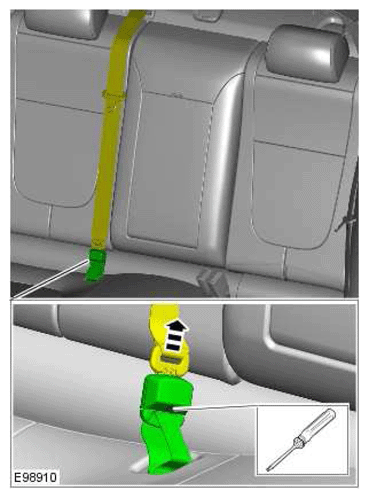

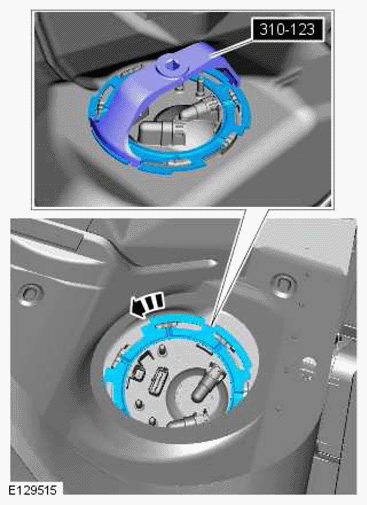

- Special Tool(s): 310-123
NOTE:

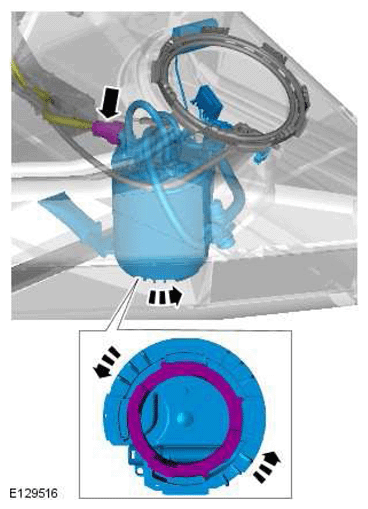

- Note the position of the locating tang.

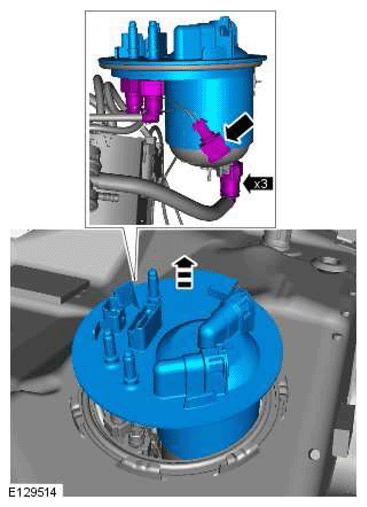

- Remove and discard the O-ring seal.
CAUTION: Take extra care not to damage the fuel tank level sensor float and arm.
