Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XF, 2017 Jaguar XF, and 2016 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Make sure that all openings are sealed. Use new blanking caps.
  • Be prepared to collect escaping fluids.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: TRANSMISSION FLUID DRAIN AND REFILL .
  2. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
  3. G11291683

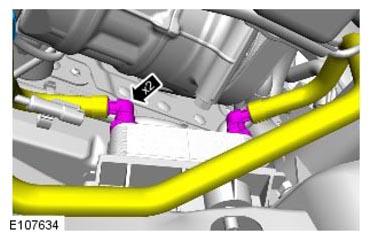

  4. G11291684

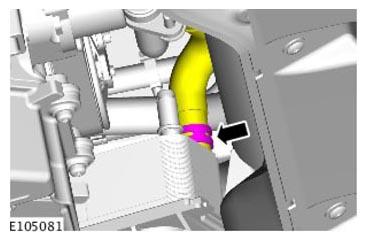

  5. G11291685

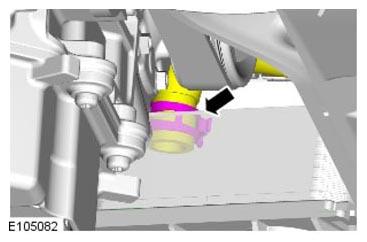

  6. G11291686

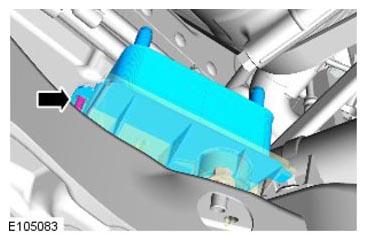

  7. G11291687

    Torque Specification  : 5 Nm
