Removal And Installation: Removal
CAUTION:
Make sure that all openings are sealed. Use new blanking caps.
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
- Disconnect the battery ground cable.
Refer to: Battery Disconnect/Connect
- Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions
- Refer to: Fuel System Pressure Release - GTDi 2.0L Petrol
- Refer to: Intake Manifold
-
CAUTION: Discard the fuel pipe.
-

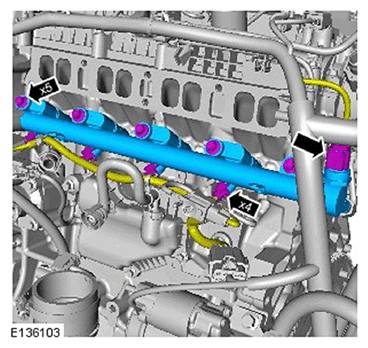

CAUTION: Take extra care not to damage the edges of the component.NOTE: Note the position of the components prior to removal.
-
CAUTION: Make sure that the mating faces are clean and free of foreign material.
-
CAUTION:
- If new fuel injectors are installed, a new injector clamp must be installed.
- If the fuel injector is being removed without a new component being installed, the fuel injector clamp must remain with the fuel injector it is removed with.
-

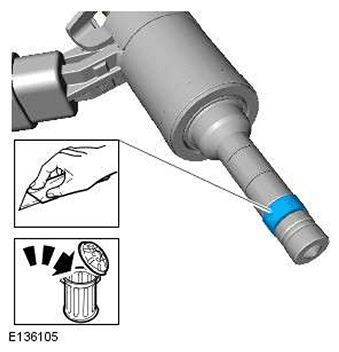

CAUTION:
- Do not use excessive force to cut the fuel injector seal.
- Pinch the Teflon seal to allow the tool to cut the Teflon seal without damaging the fuel injector.
- Do not cut the Teflon seal to deep as damage could occur to the fuel injector.
- Do not use any sharp tools to remove the O-ring seal as damage could occur to the fuel injector.
NOTE:- Repeat this step for each of the fuel injectors.
- When cutting the fuel injector seal from the fuel injector, cut towards the electrical connector end of the fuel injector.
