Removal And Installation: Removal
CAUTION:
- Extreme cleanliness must be exercised when handling these components.
- If brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Remove the brake fluid reservoir.
Refer to: Brake Fluid Reservoir - TD4 2.2L Diesel .

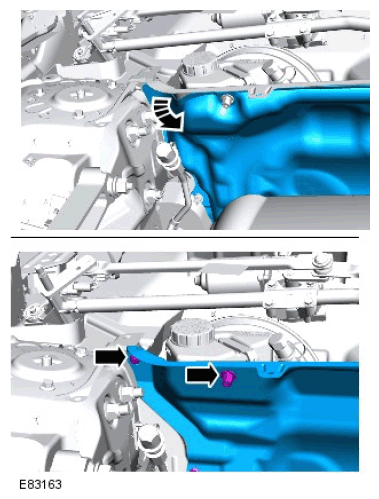

Right-hand drive vehicles
-
NOTE: Torque applies to bolt only.
Torque Specification: 10 Nm
All vehicles
-

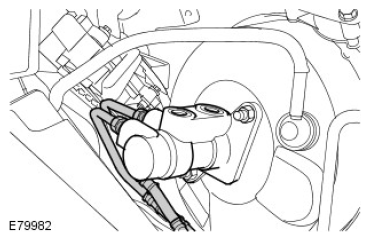

CAUTION:
- Be prepared to collect escaping fluids.
- Make sure that all openings are sealed.
Torque Specification: 15 Nm
-

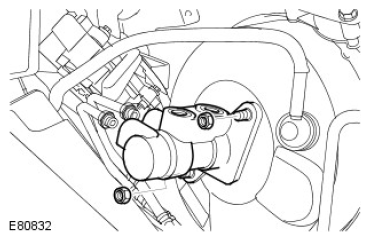

CAUTION:
- Be prepared to collect escaping fluids.
- The seal is to be reused unless damaged.
Torque Specification: 26 Nm
