Removal And Installation: Removal

  1. Position the front seat fully rearwards.
  2. Open the glove compartment to the service condition.
  3. CAUTION: Make sure that excessive force is not used to release the glove compartment. Failure to follow these instructions may result in damage to the vehicle.

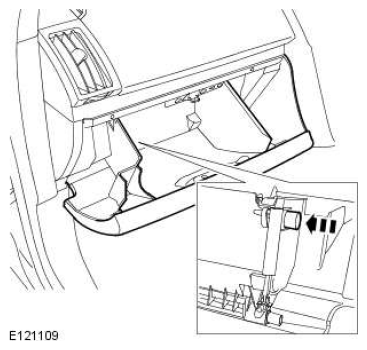

    G11591237

    Release the glove compartment.

  4. CAUTION: Make sure that excessive force is not used to release the glove compartment. Failure to follow these instructions may result in damage to the vehicle.

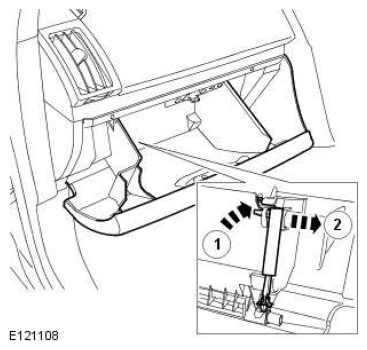

    G11591238

    Release the glove compartment damper.

  5. Remove the glove compartment.
