Removal And Installation: Removal

NOTE:
  • When a new instrument cluster is to be installed, the Land Rover approved diagnostic system must be connected to the vehicle and the instrument cluster renewal procedure followed. This will allow vehicle coding data and current service interval data to be correctly installed to the new instrument cluster.
  • Removal steps in this procedure may contain installation details.
  1. Make the SRS system safe.

    Refer to: Standard Workshop Practices

  2. Remove the driver lower air bag module.

    Refer to: Driver Lower Airbag Module

  3. NOTE: RHD illustration shown, LHD is similar.

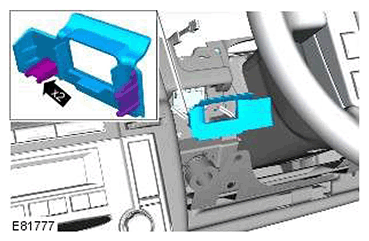

    G11587172

    Remove the keyless start control module trim cover.

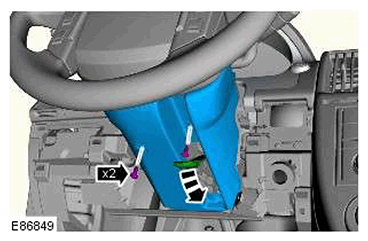

  4. G11587152

    Remove the steering column lower cowl.

  5. Adjust the steering column to its lowest position.

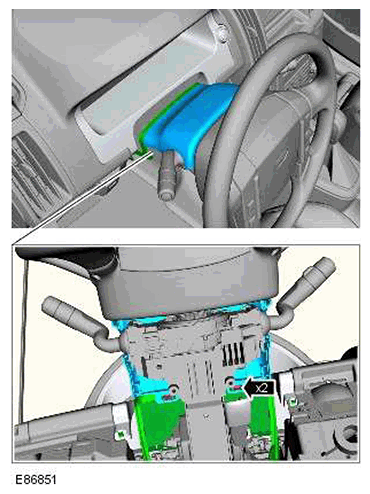

  6. G11587153
  7. NOTE: Take extra care when releasing the clips.

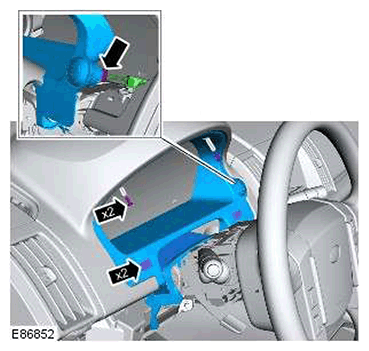

    G11587175

    Remove the instrument cluster surround.

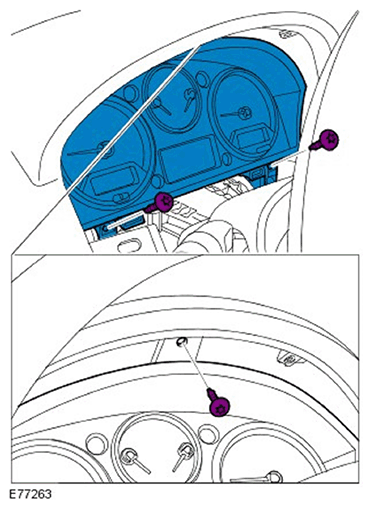

  8. G11589453
    • Remove the 3 Torx screws.

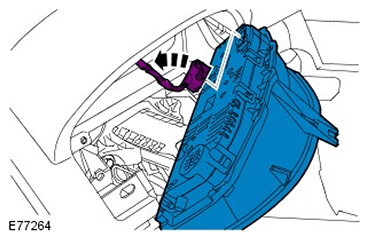

  9. G11589454
