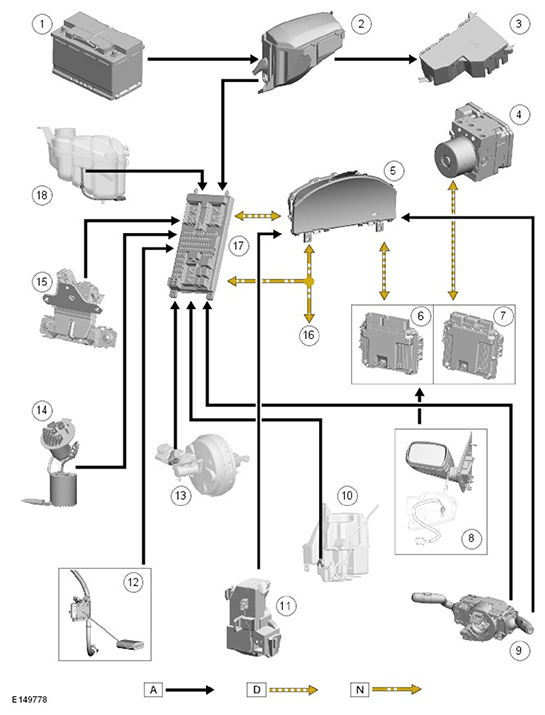

Control Diagram
NOTE:
A
= Hardwired; D
= High Speed CAN (controller area network) bus; N
= Medium Speed CAN bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box (BJB) |
| 3 | Rear Junction Box (RJB) |
| 4 | Anti-Lock Brake System (ABS) control module |
| 5 | Instrument Cluster (IC) |
| 6 | Engine Control Module (ECM) - GTDi 2.0L PETROL |
| 7 | ECM - TD4 2.2L DIESEL |
| 8 | Ambient Air Temperature (AAT) sensor |
| 9 | Clockspring |
| 10 | Washer fluid level sensor |
| 11 | Electric Steering Column Lock (ESCL) |
| 12 | Fuel level sensor |
| 13 | Brake fluid level sensor |
| 14 | Fuel pump module |
| 15 | Tailgate latch |
| 16 | CAN connection to other systems |
| 17 | Central Junction Box (CJB) |
| 18 | Engine coolant level sensor |
