Component Location - Row

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

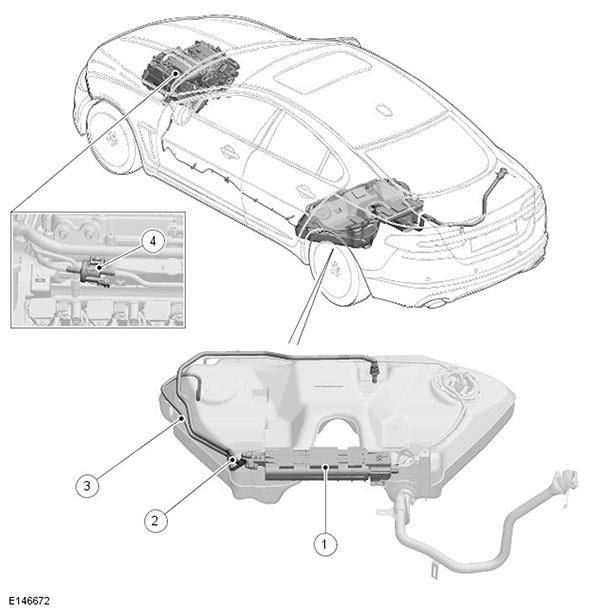

G11416835
ITEM DESCRIPTION
1 Evaporative Emissions (EVAP) canister
2 Vapor pipe - fuel tank to EVAP canister
3 Vapor pipe -EVAP canister to purge valve
4 Purge Valve
