Thermostat Housing (G1085730): Removal
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: Cooling System Draining And Vacuum Filling (G1189634) (Engine Cooling - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, General Procedures).
- Refer to: Air Cleaner Outlet Pipe T-Connector (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
- Refer to: Left Air Cleaner Outlet Pipe (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
- Refer to: Left Air Cleaner (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
-

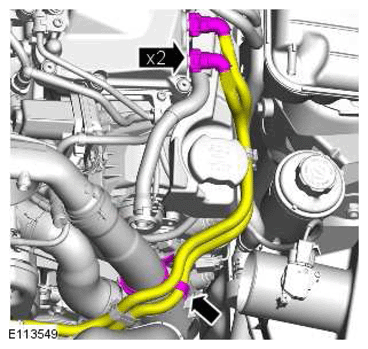

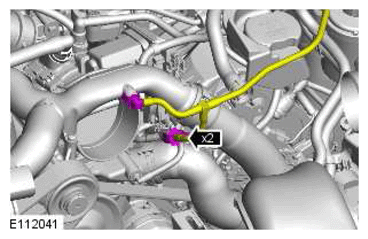

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
-

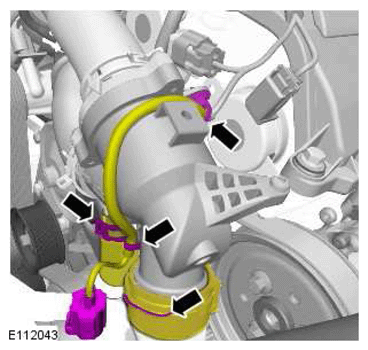

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
-

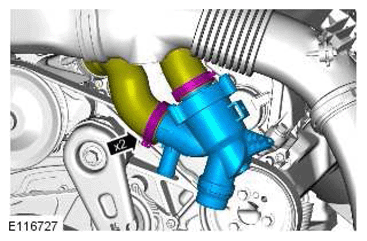

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
-
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

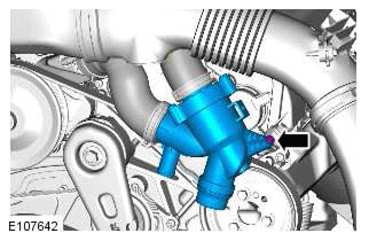

Torque Specification: 10 Nm
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
