Radiator (G1188793): Removal

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

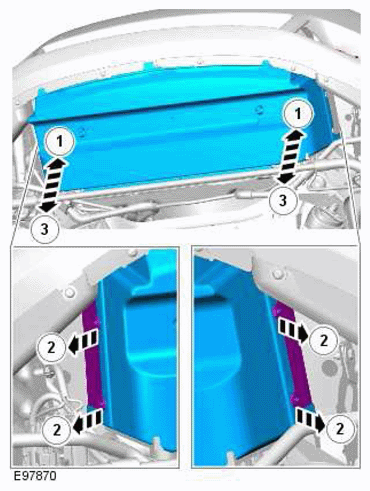

    G11418634

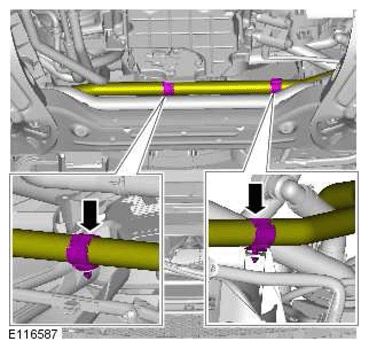

  4. G11418635

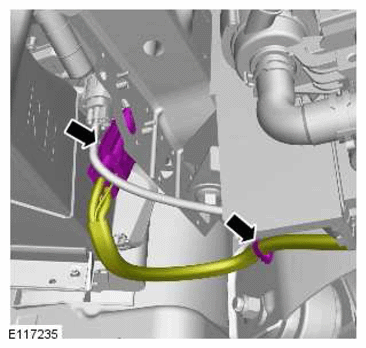

  5. G11418636
  6. WARNING:
    • Since injury such as scalding could be caused by escaping steam or coolant, do not remove the filler cap from the coolant expansion tank while the system is hot.
    • Be prepared to catch escaping fluid.

    Refer to: Cooling System Draining And Vacuum Filling (G1189634)  (Engine Cooling - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, General Procedures).

  7. Lower the vehicle.
  8. Refer to: Left Air Cleaner Outlet Pipe (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  9. Refer to: Right Air Cleaner Outlet Pipe (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  10. Refer to: Air Cleaner Outlet Pipe T-Connector (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  11. Refer to: Right Air Cleaner (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  12. Refer to: Left Air Cleaner (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  13. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

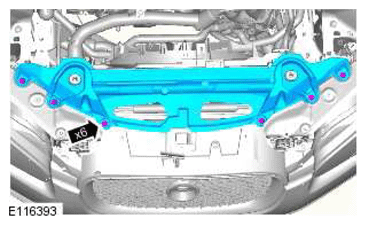

    G11418637

    Torque Specification: 9 Nm

  14. CAUTION: Be prepared to collect escaping coolant.

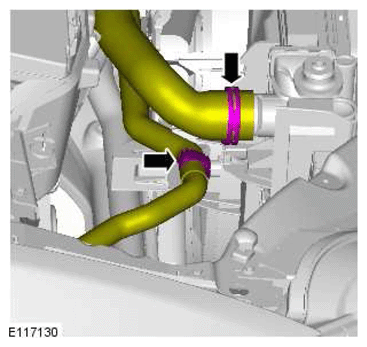

    G11418638

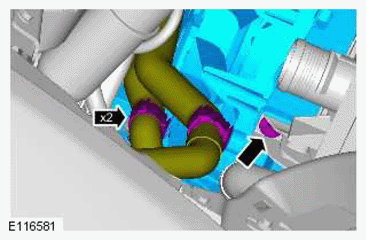

  15. G11418639

    Torque Specification: 7 Nm

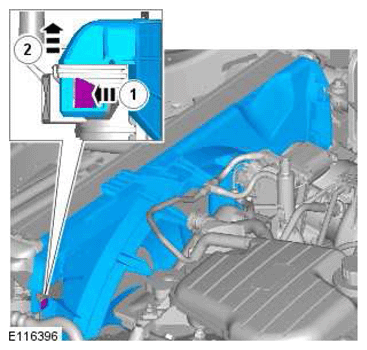

  16. G11418640
  17. CAUTION: Be prepared to collect escaping coolant.

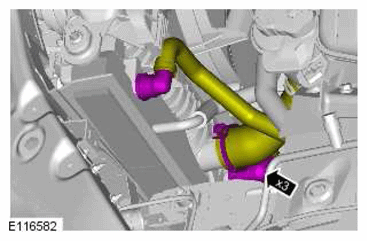

    G11418641

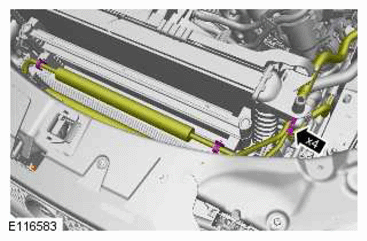

  18. G11418642
    CAUTION: Be prepared to collect escaping coolant.

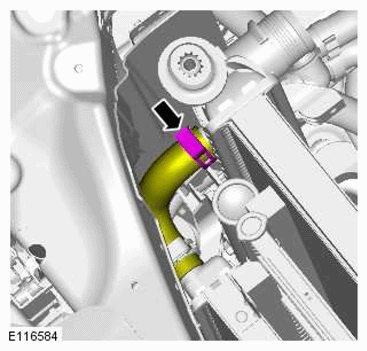

    G11418643

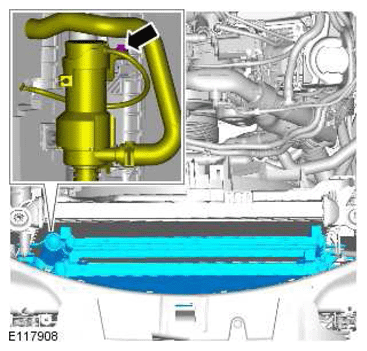

  19. G11418644

    Torque Specification: 7 Nm

  20. NOTE: Support the air conditioning (A/C) condenser.

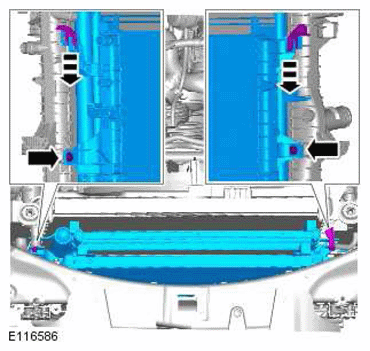

    G11418645

    Torque Specification: 7 Nm

  21. CAUTION: Be prepared to collect escaping coolant.

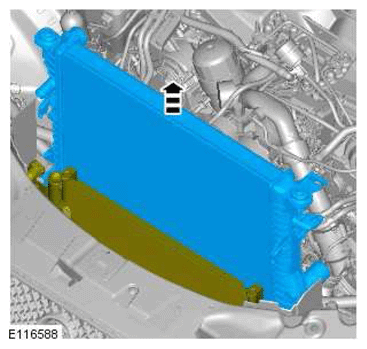

    G11418646
  22. NOTE: Do not disassemble further if the component is removed for access only.

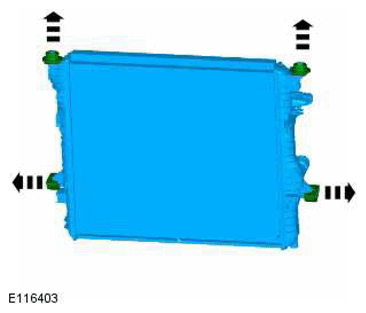

    G11418647

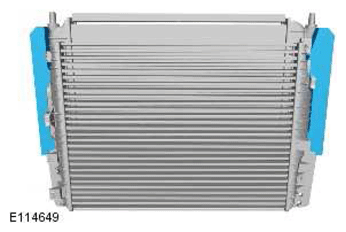

G11418648
