Cooling Module (G1193786): Removal

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. Refer to: Air Conditioning System Recovery, Evacuation and Charging (Climate Control System - General Information, General Procedures).
  3. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  4. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

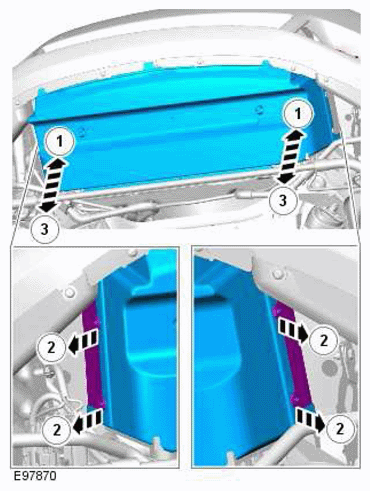

    G11418606
  5. WARNING:
    • Since injury such as scalding could be caused by escaping steam or coolant, do not remove the filler cap from the coolant expansion tank while the system is hot.
    • Be prepared to catch escaping fluid.

    Refer to: Cooling System Draining And Vacuum Filling (G1189634)  (Engine Cooling - V8 5.0L Petrol / V8 S/C 5.0L Petrol, General Procedures).

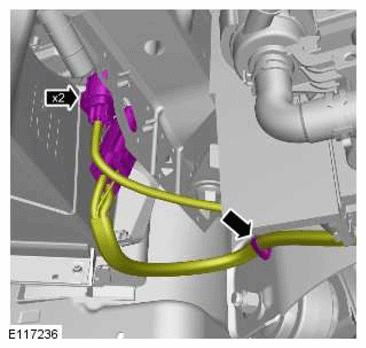

  6. G11418607

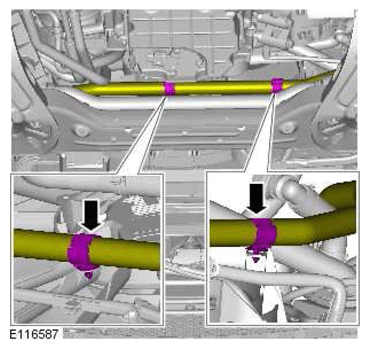

  7. G11418608
  8. CAUTION: A new O-ring seal is to be installed.

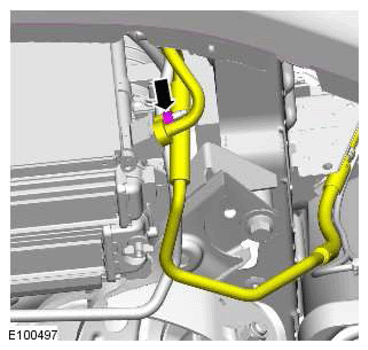

    G11418609

    Torque Specification: 8 Nm

  9. CAUTION: A new O-ring seal is to be installed.

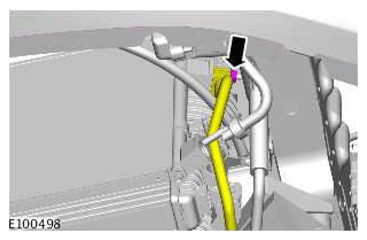

    G11418610

    Torque Specification: 8 Nm

  10. Lower the vehicle.
  11. Refer to: Left Air Cleaner Outlet Pipe (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  12. Refer to: Right Air Cleaner Outlet Pipe (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  13. Refer to: Air Cleaner Outlet Pipe T-Connector (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  14. Refer to: Right Air Cleaner (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  15. Refer to: Left Air Cleaner (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
  16. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

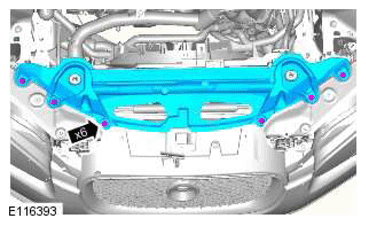

    G11418611

    Torque Specification: 9 Nm

  17. CAUTION: Be prepared to collect escaping coolant.

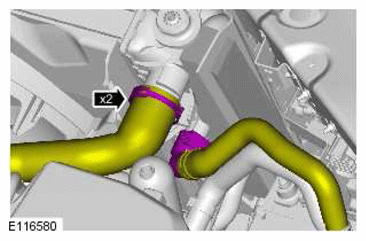

    G11418612

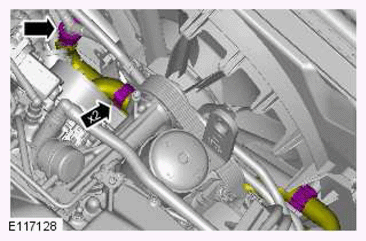

  18. G11418613

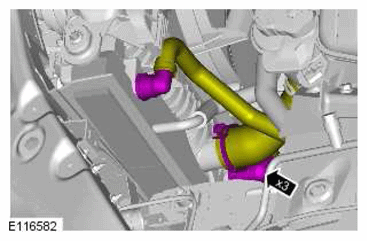

  19. G11418614

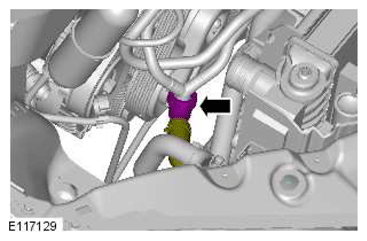

  20. G11418615

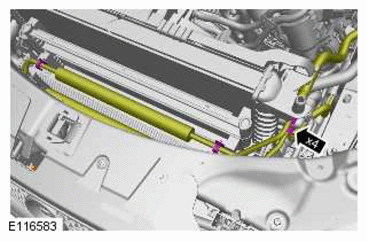

  21. G11418616
CAUTION: Be prepared to collect escaping coolant.

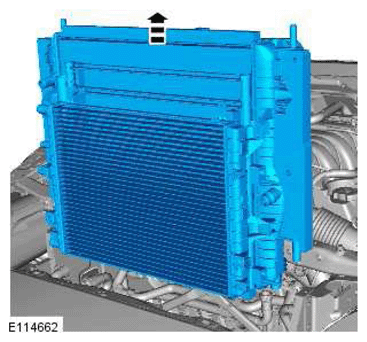

G11418617
