Coolant Expansion Tank (G1085721): Removal

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. Using a syringe, remove the cooling fluid from the expansion tank.
  3. CAUTION: Take extra care not to damage the component.

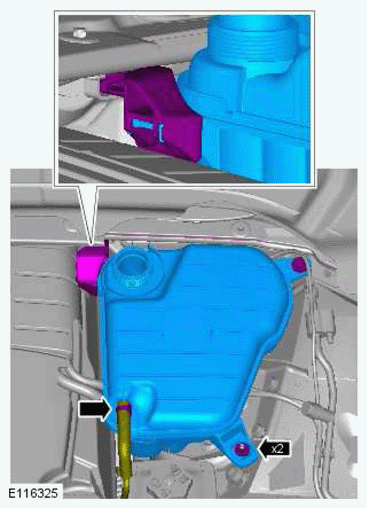

    G11418589

    Torque Specification: 7 Nm

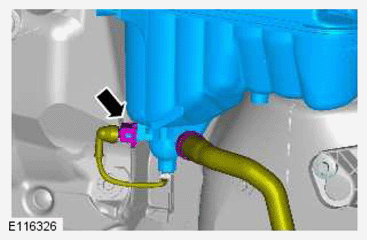

  4. G11418590
  5. CAUTION: Note the fitted position of the component prior to removal.
    NOTE:
    • Do not disassemble further if the component is removed for access only.
    • Make sure that the component is installed to the position noted on removal.

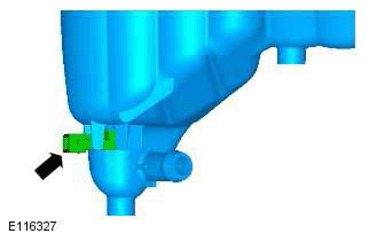

    G11418591
