Auxiliary Radiator (G1085720): Removal

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
Refer to: Air Cleaner RH (Intake Air Distribution and Filtering - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
CAUTION: Be prepared to collect escaping coolant.
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: Cooling System Draining And Vacuum Filling (G1189634) (Engine Cooling - V8 5.0L Petrol / V8 S/C 5.0L Petrol, General Procedures).
Refer to: Fender Splash Shield (Front End Body Panels, Removal and Installation).

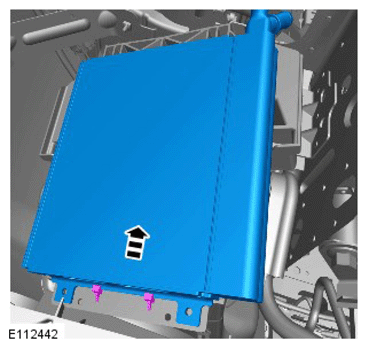

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

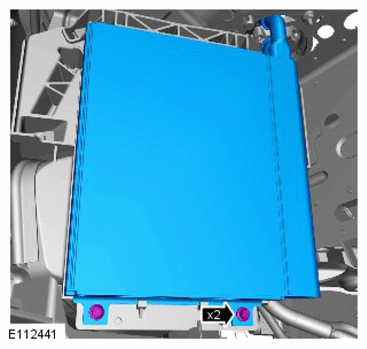

Torque Specification: 9 Nm

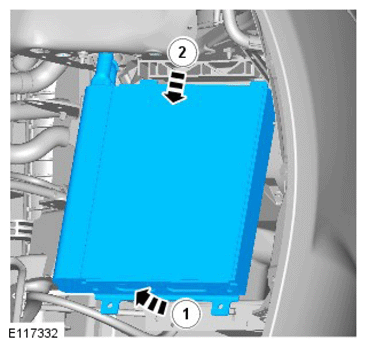

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

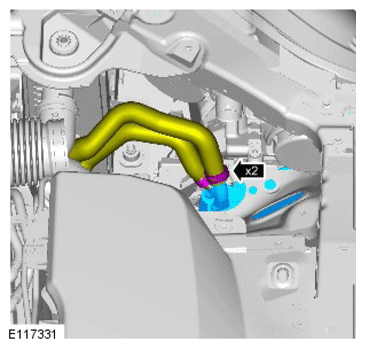

CAUTION: Be prepared to collect escaping coolant.
