Cooling System Draining, Filling And Bleeding - V8 S/C 5.0L Petrol (G1193788): Draining
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
- WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: Secondary Bulkhead Center Panel - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Front End Body Panels, Removal and Installation).
- Refer to: Air Deflector (Front End Body Panels, Removal and Installation).
- Refer to: Radiator Splash Shield (Front End Body Panels, Removal and Installation).
-

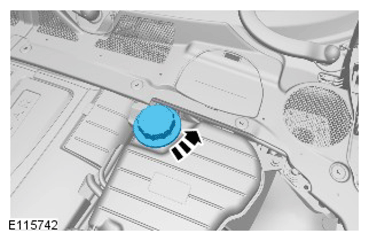

WARNING:
- Release the cooling system pressure by slowly turning the coolant expansion tank cap a quarter of a turn. Cover the expansion tank cap with a thick cloth to prevent the possibility of scalding. Failure to follow this instruction may result in personal injury.
- Be prepared to collect escaping fluid.
CAUTION: Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure. -

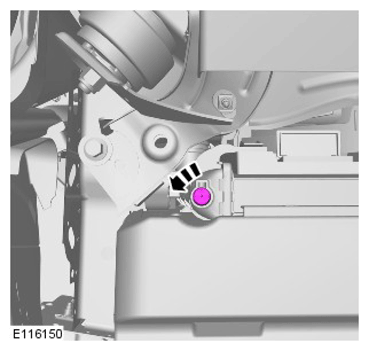

CAUTION: Be prepared to collect escaping fluids.
-

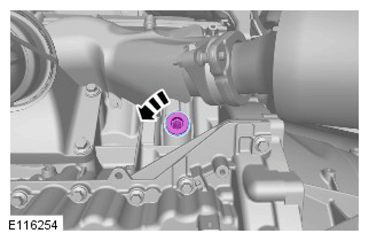

CAUTION: Be prepared to collect escaping fluids.
-

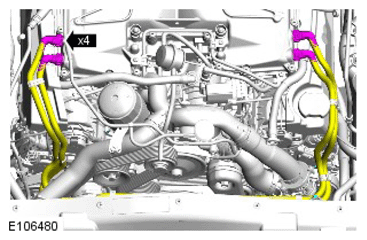

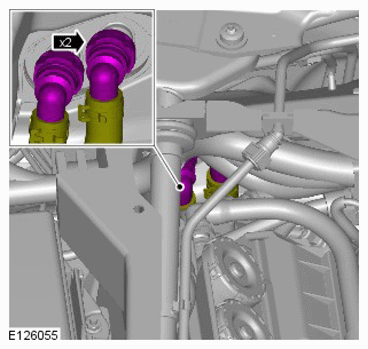

CAUTION: Be prepared to collect escaping coolant.
Torque Specification: 2 Nm

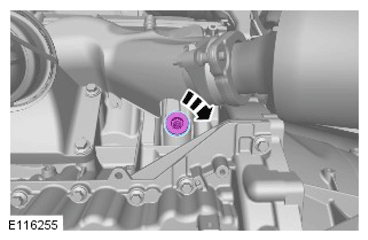

Torque Specification: 50 Nm
- Carry out the procedure up to step 1 in the filling section three times, filling the cooling system with clean water at the first two drains. At the third refill, use a suitable measuring tool to make sure that the cooling system maintains a 50% mix.
