Cooling System Draining And Vacuum Filling (G1189634): Draining

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: Radiator Splash Shield (Front End Body Panels, Removal and Installation).
  2. WARNING: Release the cooling system pressure by slowly turning the coolant expansion tank cap a quarter of a turn. Cover the expansion tank cap with a thick cloth to prevent the possibility of scalding. Failure to follow this instruction may result in personal injury.
    CAUTION:
    • Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure
    • Be prepared to collect escaping coolant.

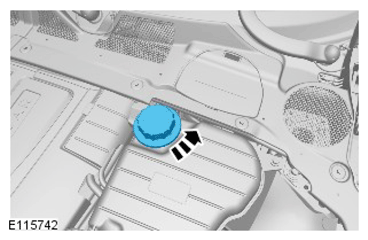

    G11418527
  3. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  4. CAUTION: Be prepared to collect escaping coolant.
    G11418528

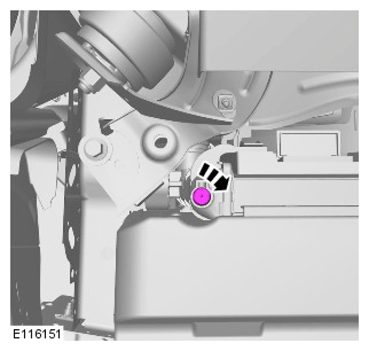

  5. G11418529

    Torque Specification: 2 Nm

  6. CAUTION: Be prepared to collect escaping coolant.
    CAUTION: Only carry out the following step if the coolant is to be drained from the engine.

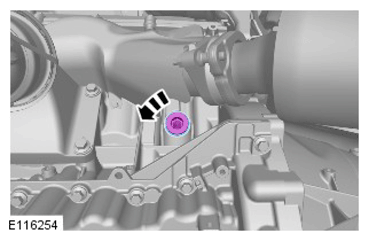

    G11418530
  7. NOTE: This step is only required if previously removed.

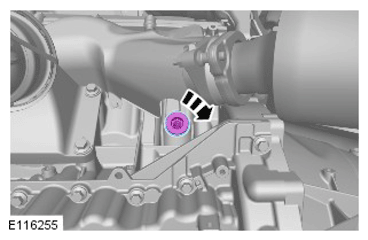

    G11418531

    Torque Specification: 50 Nm
