Radiator (Naturally Aspirated Vehicles)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

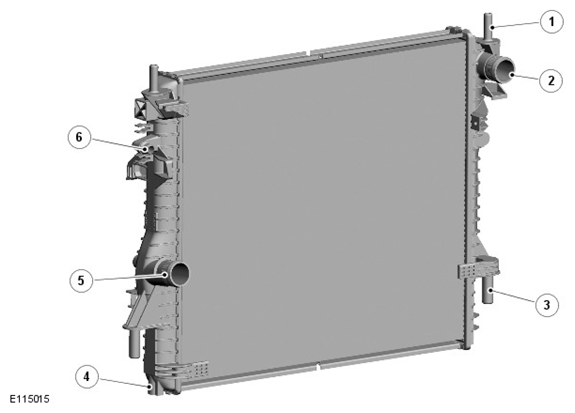

G11418519
ITEM DESCRIPTION
1 Locating spigot (2 off)
2 Upper hose connection
3 Support (2 off)
4 Drain plug
5 Lower hose connection
6 Transmission fluid cooler inlet hose connection
