Cooling Fan
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

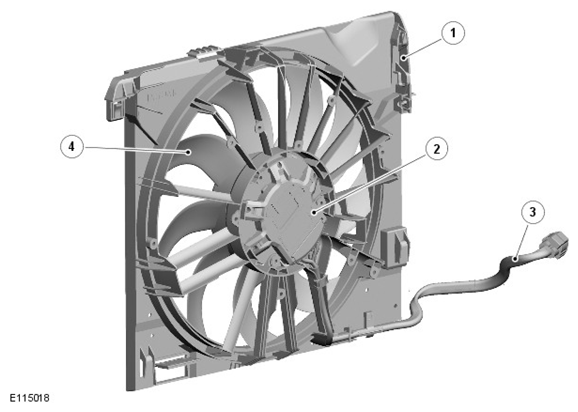

| ITEM | DESCRIPTION |
|---|---|
| 1 | Shroud |
| 2 | Motor and fan control module |
| 3 | Harness |
| 4 | Fan |
An electric, variable speed cooling fan is installed in a shroud attached to the rear of the radiator. The cooling fan is operated by a fan control module, integrated into the electric motor, under the control of the ECM. An electrical connector at the RH side of the shroud provides the interface between the cooling fan harness and the vehicle wiring.
