Engine Cooling Flow Diagram - Naturally Aspirated Vehicles

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

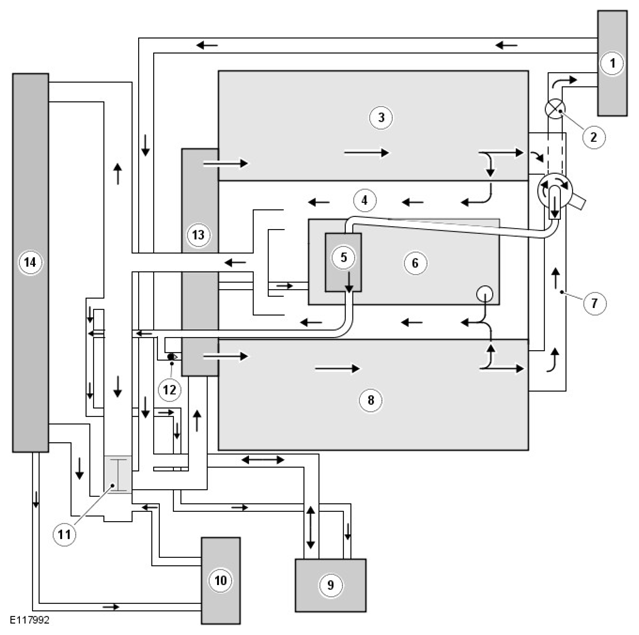

G11418515
ITEM DESCRIPTION
1 Heater core
2 Bleed screw
3 RH (right hand) cylinder head
4 Cylinder block
5 Throttle
6 Engine oil cooler
7 Heater manifold
8 LH (left hand) cylinder head
9 Expansion tank
10 Transmission fluid cooler
11 Thermostat
12 Check valve
13 Coolant pump
14 Radiator
