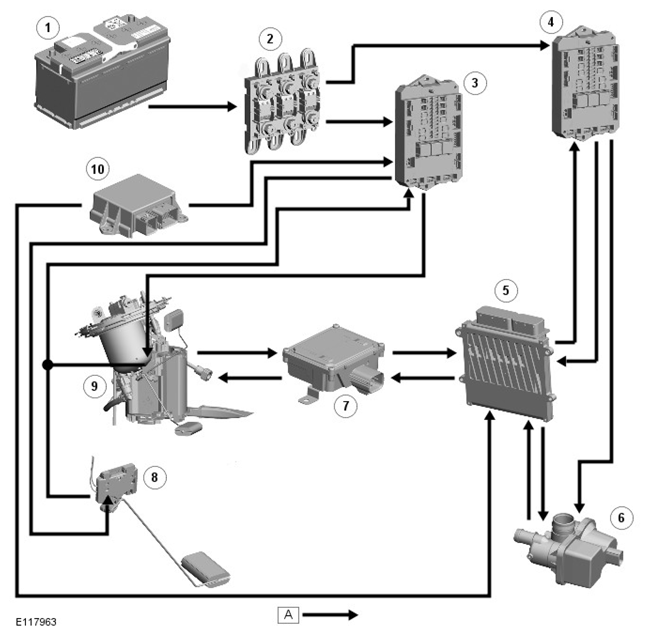

Control Diagram - Vehicles Without Flex Fuel Sensor
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Megafuse (250A) |
| 3 | Rear Junction Box (RJB) |
| 4 | Central Junction Box (CJB). |
| 5 | Engine Control Module (ECM) |
| 6 | Diagnostic Module Tank Leakage (DMTL) Pump |
| 7 | Fuel Pump Driver Module (FPDM) |
| 8 | Fuel level sensor 'B' |
| 9 | Fuel level sensor 'A' and fuel pump module |
| 10 | Restraints Control Module (RCM) |
