Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XF and 2017 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

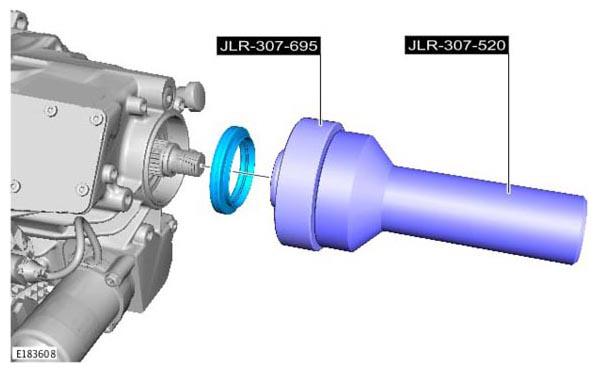

  1. G11314284

    Using the special tool, install a new output shaft seal.

    Special Tool(s):  307-520, JLR-307-695

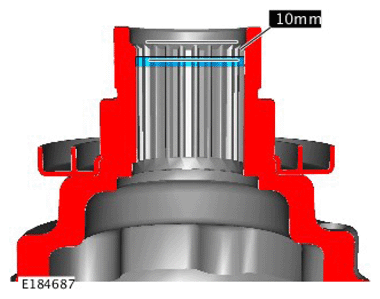

  2. G11329597

    Apply a 1 mm diameter bead of Loctite 648 to the output flange splines 10 mm inner end before installing the flange.

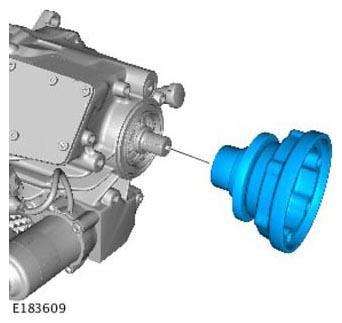

  3. G11314285

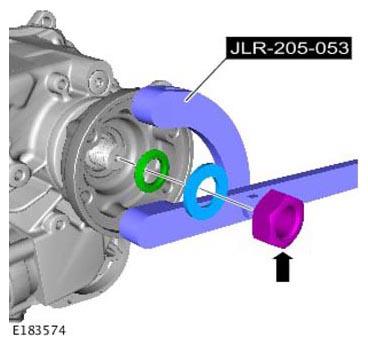

  4. CAUTION:
    • Install a new seal.
    • Install a new nut.
    G11314279

    Special Tool(s):  205-053

    Torque Specification:  : 160 Nm

  5. CAUTION: A new breather vent must always be installed.
    G11314275
  6. Refer to: Rear Driveshaft - AWD
  7. Refer to: Transfer Case Fluid Level Check
