General Procedures: Filling

WARNING: This page is about a different car, the 2018 Jaguar XF and 2017 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    NOTE: Discard the sealing washer.
    G11314248

    Remove the upper level plug.

  2. Refill transfer case with the recommended fluid, until the fluid is level with bottom of filler/level plug hole.
  3. CAUTION: Make sure that a new sealing washer is installed.
    NOTE: Make sure that all the component mating faces are clean.
    G11314248

    Install the upper filler/level plug

    Torque Specification:  : 8 Nm

  4. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    G11314247

    Remove the lower filler/level plug.

  5. Refill transfer case with the recommended fluid, until the fluid is level with bottom of filler/level plug hole.

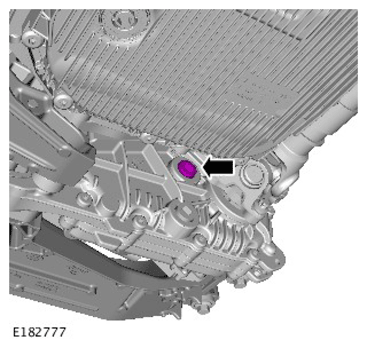

  6. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    G11329559

    Install the lower filler/level plug

    Torque Specification:  : 25 Nm

  7. Refer to: Air Deflector
    1. Drive the vehicle for approximately 1 Km (0.6 miles).
      • Connect an approved battery support unit/power supply to the vehicle.
      • Connect the approved diagnostic equipment.
      • Check for Transfer Case Control Module (TCCM) software updates.
      • Update TCCM software if required.
    2. With the engine running carry out diagnostic service function, Transfer case - oil change reset  procedure.
      • Disconnect the approved diagnostic equipment.
      • Disconnect the approved battery support unit/power supply from the vehicle.
