General Procedures: Draining
WARNING: This page is about a different car, the 2018 Jaguar XF and 2017 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: Air Deflector
- Position a container to collect the fluid.
-
CAUTION: Make sure that the area around the component is clean and free of foreign material.

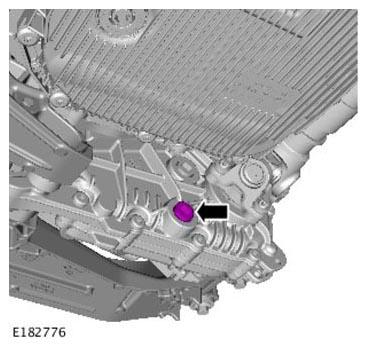

Remove the lower drain plug and allow the fluid to drain.
-

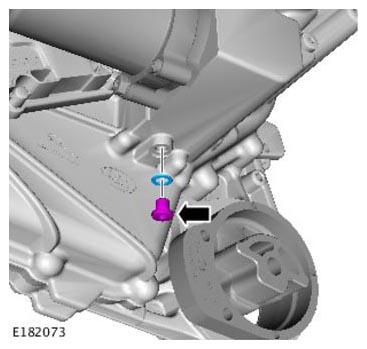

CAUTION: Make sure that the area around the component is clean and free of foreign material.NOTE: Discard the sealing washer.
Remove the upper drain plug and allow the fluid to drain.
-
NOTE: Make sure that all the component mating faces are clean.
Install the lower drain plug.
Torque Specification: : 25 Nm
-
CAUTION: Make sure that a new sealing washer is installed.
Install the upper drain plug.
Torque Specification: : 8 Nm
