Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XF and 2017 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: Transfer Case

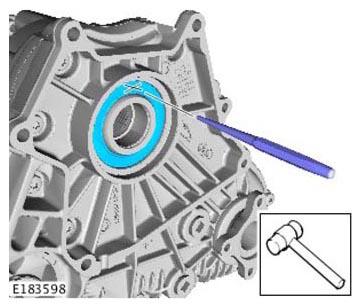

Using a center punch and hammer, pierce a hole in the seal at the 12 O'clock position.
WARNING: Be prepared to collect escaping oil.

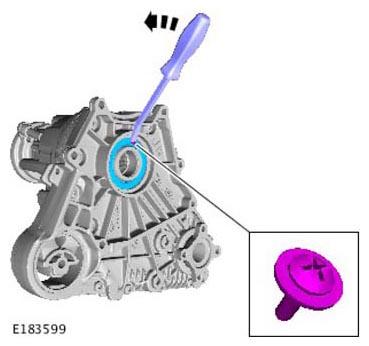

Screw a 2.5 x 15 mm self-tapping screw, a maximum of 2 turns into the input shaft seal and remove the seal using a suitable tool.

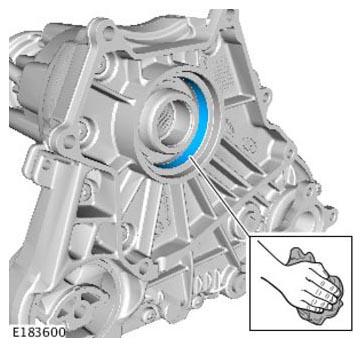

Clean the seal register and thoroughly inspect for damage.
