Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XF and 2017 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: Lifting

  3. Remove the transfer case.

    Refer to: Transfer Case

  4. G11314303

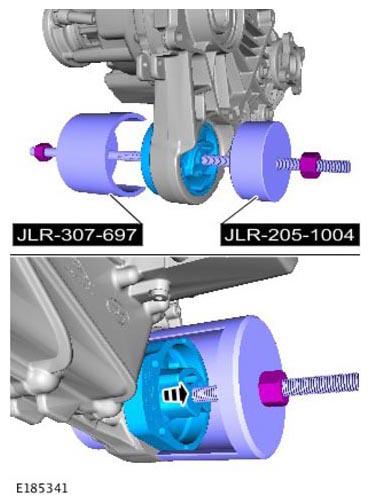

    Using the special tools, press out and discard the transfer case bush.

    Special Tool(s):  JLR-205-1004, JLR-307-697

  5. G11314304

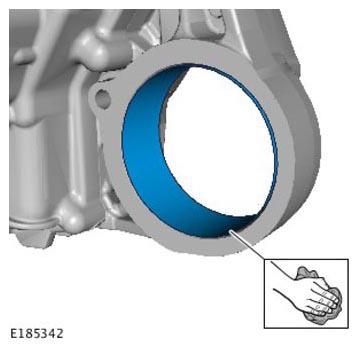

    Clean all the mating faces thoroughly and check for damage.
