Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XF and 2017 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

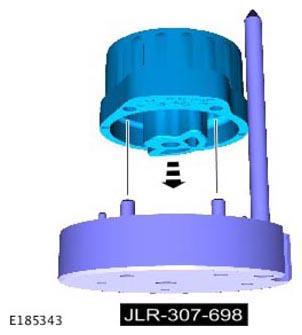

  1. CAUTION: Make sure the special tool is installed to the bush in the correct orientation.
    G11314305

    Special Tool(s):  JLR-307-698

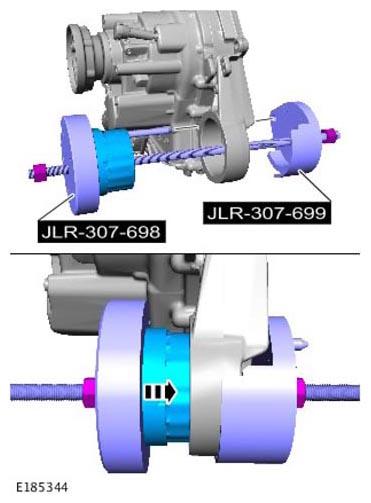

  2. NOTE: To aid installation, lubricate the bush with soapy water.
    G11314306

    Using the special tools, install the transfer case bush half way into the transfer case and wait for 2 minutes.

    Special Tool(s):  JLR-307-698

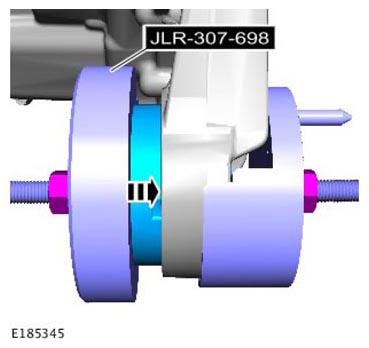

  3. G11314307

    Fully install the transfer case bush into the transfer case and wait for 2 minutes.

    Special Tool(s):  JLR-307-698

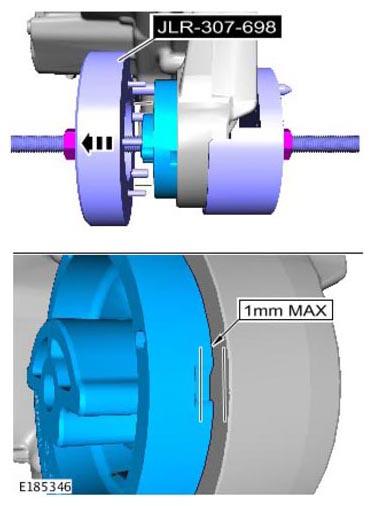

  4. G11314308

    Release the special tools and wait for 2 minutes. Check that the bush is evenly installed with no more than a 1mm gap between the faces of the bush and the transfer case. If the gap is more than 1mm repeat installation step  3.

    Special Tool(s):  JLR-307-698

  5. Install the transfer case.

    Refer to: Transfer Case

  6. Connect the battery ground cable.

    Refer to: Battery Disconnect and Connect
