Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XF and 2017 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Connect the approved diagnostic equipment to obtain any fault code data (or) any diagnostic trouble codes (DTC's).
  2. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect

  3. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: Lifting

  4. Drain the transfer case.

    Refer to: Transfer Case Draining and Filling

  5. G11314294

    Remove the heat shield.

  6. G11314295

    Disconnect and reposition the wiring harness.

  7. Using a suitable stand, support the transmission.
  8. G11314296

    Remove the cross member to transfer case retaining bolt.

  9. G11314297

    Remove the cross member

  10. G11314298

    Disconnect the connector.

  11. WARNING: Be prepared to collect escaping oil.
    CAUTION: Remove and discard the O-ring seals.

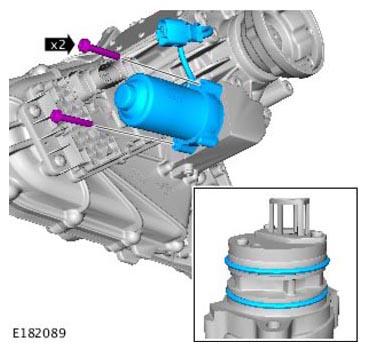

    G11314299

    Remove the transfer case actuator.
