Brake Pedal And Bracket: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Make the SRS system safe. Refer to Supplemental Restraint System (SRS) Depowering and Repowering or Refer to Supplemental Restraint System (SRS) Depowering and Repowering .
  2. Remove the driver lower air bag module. Refer to Driver Lower Air Bag Module .
  3. Remove the throttle pedal assembly. Refer to Speed Control Actuator .
  4. See figure
    GJ0021076
  5. Remove the brake pedal assembly.

    Torque: 25 Nm

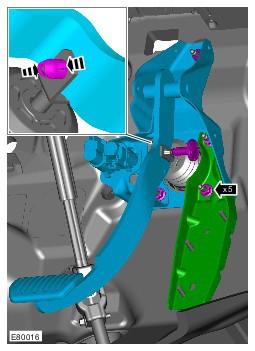

    GJ0021077
    6. NOTE: Do not disassemble further if the component is removed for access only.
  6. Remove the stoplamp switch.

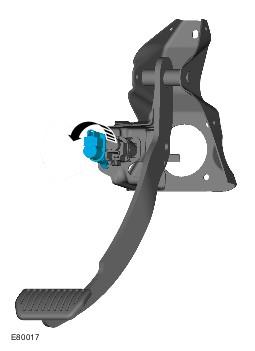

    GJ0021078
  7. Remove the speed control deactivation switch.

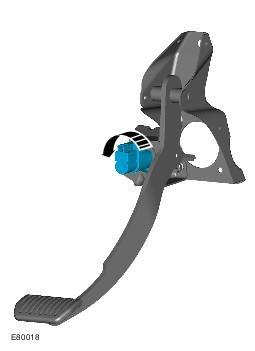

    GJ0021079
