Component Location - 2.2L DW12C Diesel
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

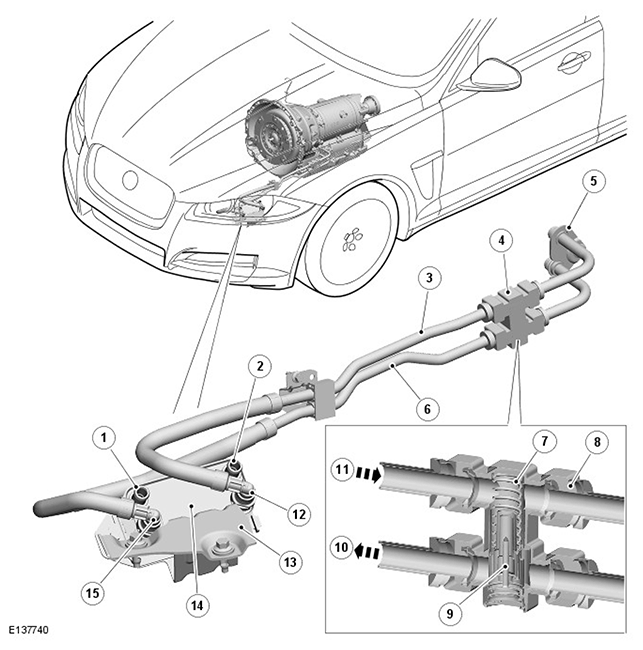

| ITEM | DESCRIPTION |
|---|---|
| 1 | Engine coolant hose connection |
| 2 | Engine coolant hose connection |
| 3 | Return pipe (to transmission) |
| 4 | Thermostatic valve |
| 5 | Latch-plate |
| 6 | Supply pipe (from transmission) |
| 7 | Spring |
| 8 | Thermostatic valve body |
| 9 | Valve |
| 10 | Supply from transmission |
| 11 | Return to transmission |
| 12 | Return pipe connection |
| 13 | Mounting bracket |
| 14 | Transmission fluid cooler |
| 15 | Supply pipe connection |
