Fuel Rail High-Pressure Fuel Pump Supply Line (G1589060): Removal

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some illustrations may show the engine removed for clarity.

Depressurize the fuel system.
Refer to: Fuel System Pressure Release - V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (General Information, General Procedures).
Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present and may ignite. Failure to follow these instructions may result in personal injury.
CAUTION:
- Be prepared to collect escaping fuel.
- Make sure that all openings are sealed. Use new blanking caps.
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

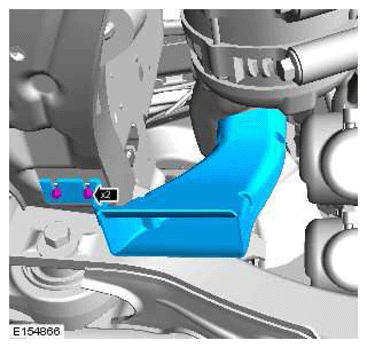

Refer to: Air Deflector (Front End Body Panels, Removal and Installation).
Refer to: Starter Motor (V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present and may ignite. Failure to follow these instructions may result in personal injury.
CAUTION:
- Be prepared to collect escaping fuel.
- Make sure that all openings are sealed. Use new blanking caps.

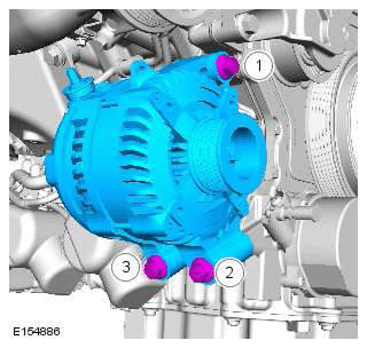

Lower the vehicle.

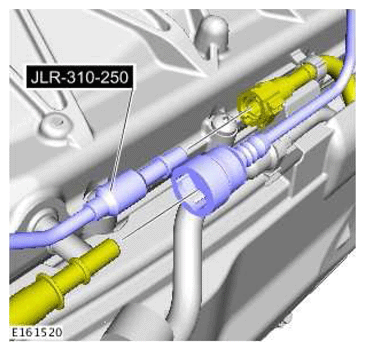

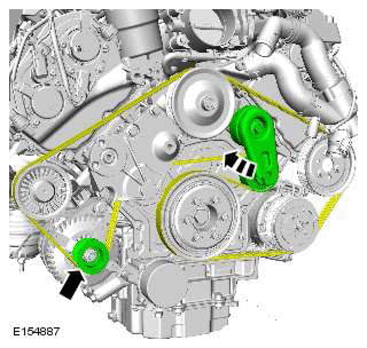

Install the special tool.

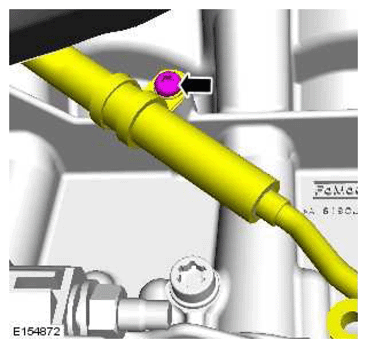

CAUTION: Discard the fuel pipe.

NOTE: This step requires the aid of another technician.

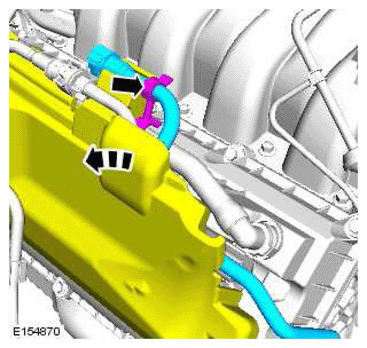

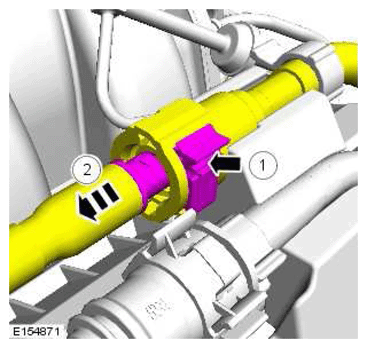

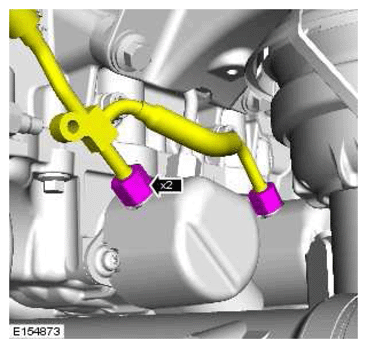

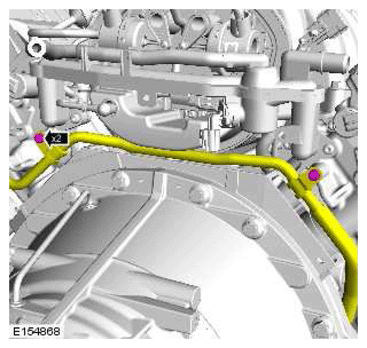

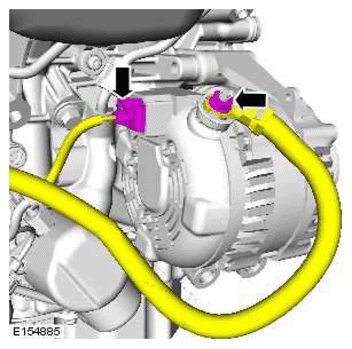

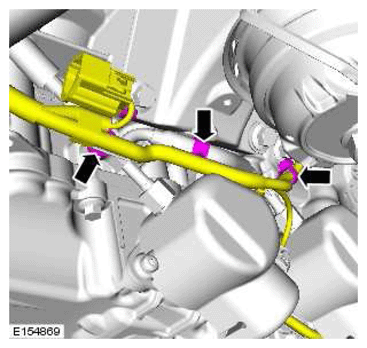

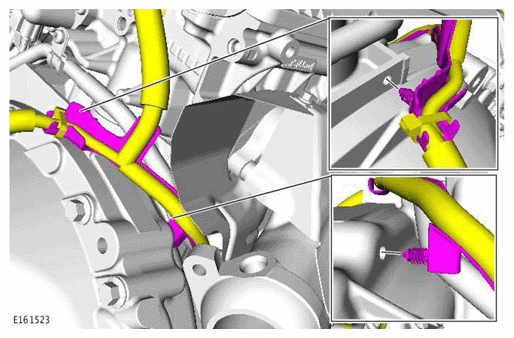

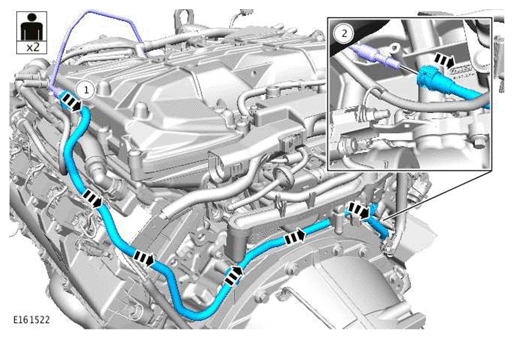

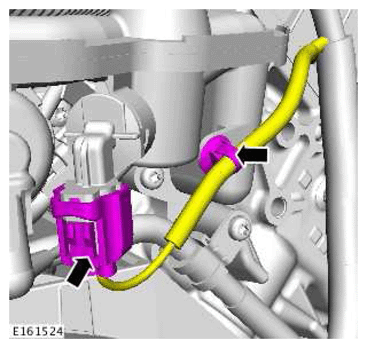

With the aid of another technician remove the low pressure fuel pipe as indicated.
