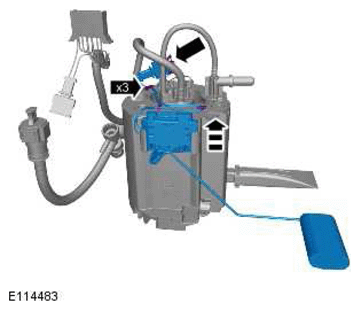

Fuel Level Sensor (G1086685): Removal

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
Refer to: Fuel Pump and Sensor Unit (Fuel Tank and Lines - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
