Fuel Level Sensor (G1086685): Notes

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
88.25.32 FUEL GAUGE TANK UNIT - RENEW 2000 CC, GTDI 1
G11424085
88.25.32 FUEL GAUGE TANK UNIT - RENEW 2200 CC, TD4 1.2
G11424086
88.25.32 FUEL GAUGE TANK UNIT - RENEW 3000 CC, AJ V6 (AJ126), SUPERCHARGED 1
G11424087

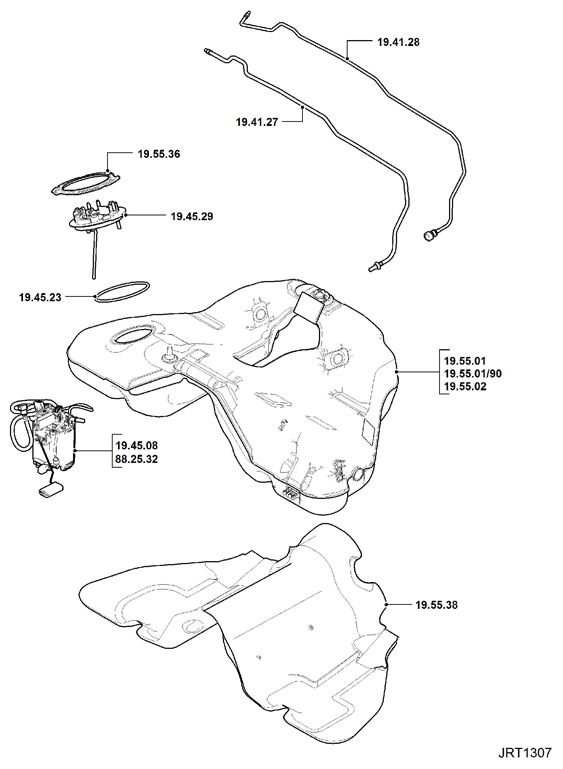

88.25.32 FUEL GAUGE TANK UNIT - RENEW 3000 CC, TDV6 1
G11424088

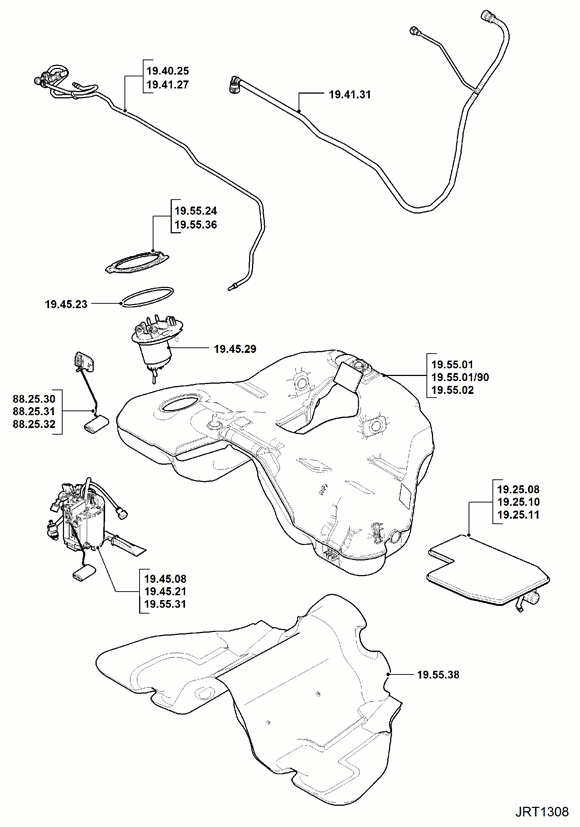

88.25.32 FUEL GAUGE TANK UNIT - RENEW 5000 CC, AJ V8 0.9
G11424089
