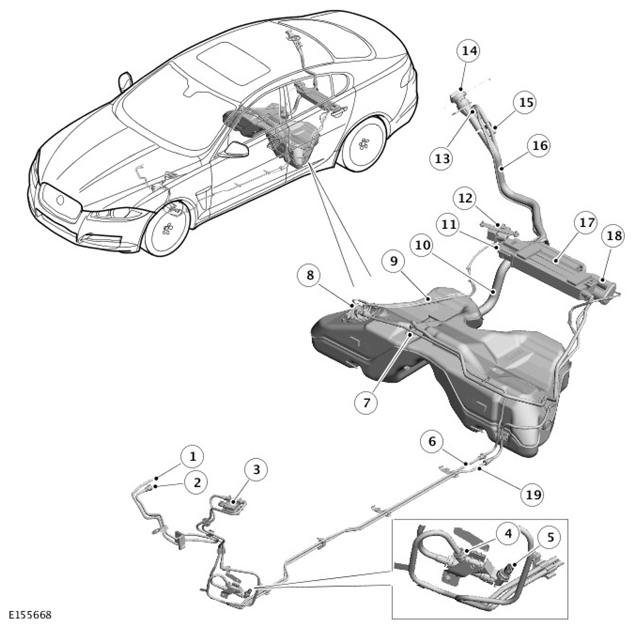

Component Location - North AMERICAN Specification (NAS) - All V8 SC 5.0L Petrol (Except XFR-S) - From 13.5 My
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel feed pipe connection |
| 2 | EVAP pipe connection |
| 3 | Flex Fuel Sensor (FFS) |
| 4 | Manifold |
| 5 | Low Pressure (LP) sensor |
| 6 | Fuel feed pipe |
| 7 | Fuel vapor vent valve |
| 8 | Fuel pump module assembly |
| 9 | Fuel tank |
| 10 | Fuel filler hose |
| 11 | Fuel Pump Driver Module (FPDM) |
| 12 | Diagnostic Module Tank Leakage (DMTL) pump |
| 13 | Anti-trickle valve |
| 14 | Fuel filler cap and lanyard |
| 15 | DMTL filter |
| 16 | Fuel filler pipe |
| 17 | Evaporative emissions canister |
| 18 | Secondary evaporative emissions canister |
| 19 | Pipe - EVAP charcoal canister to purge valve |
