Starter Motor

Courtesy of JAGUAR CARS, INC.

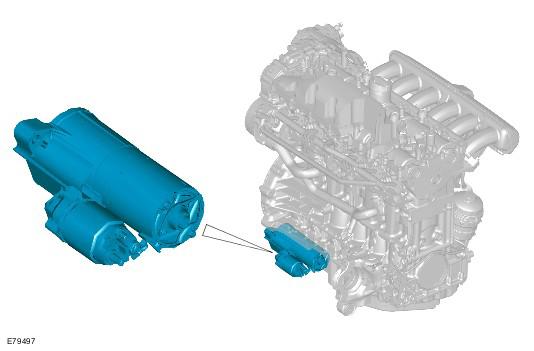

The starter motor is located in a recess at the rear of the exhaust side of the oil pan. The motor, rated at 1.4 kW, uses permanent magnets instead of field windings to provide a low-weight starter motor; with the use of planetary gears to deliver a good torque to weight ratio Refer to Starting System . .
