Oil Pump Assembly

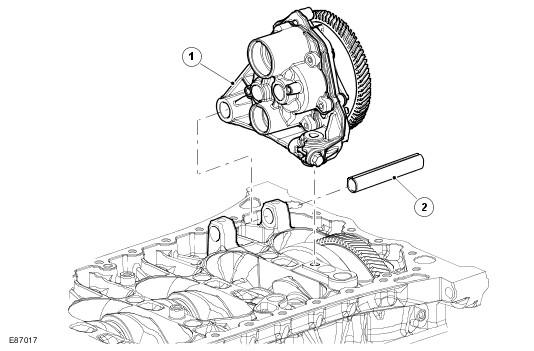

GJ0020635Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Oil pump assembly
2 Pivot pin

The oil pump is attached to bottom of the bedplate via a pivot pin and a bolt. The pump is an external gear wheel pump with integrated pressure control valve (for more information refer to the lubrication section).
