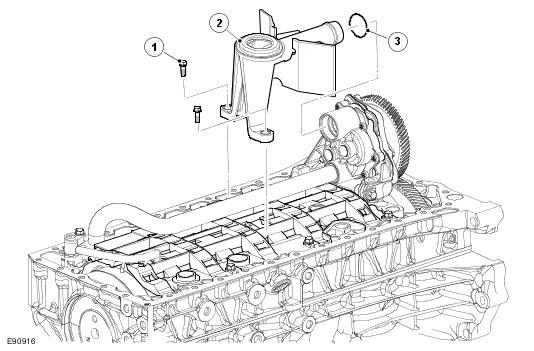

Oil Pick-Up
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Bolt (2 of) |
| 2 |
Oil pick-up |
| 3 |
O-ring seal |
The fabricated steel oil pick-up is immersed in the oil reservoir to provide a supply to the oil pump during all normal vehicle attitudes. A mesh screen in the intake prevents debris from entering the oil system.
