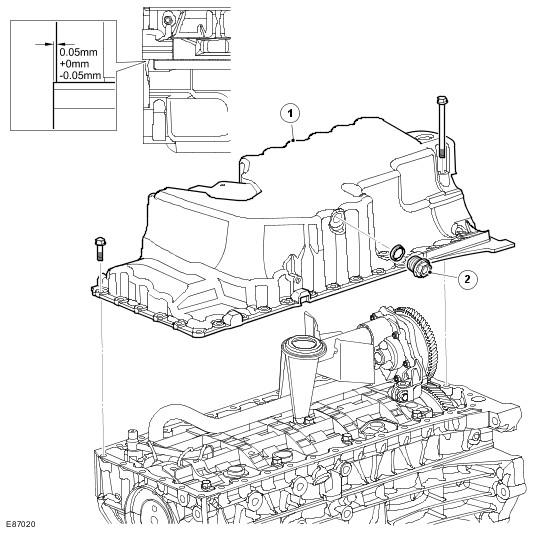

Oil Pan
| Item Number | Description |
|---|---|
| 1 | Oil pan |
| 2 | Oil drain plug |
The aluminum alloy structural oil pan is bolted to the bedplate.
NOTE:
The oil pan should always be fitted proud of the bedplate by 0.05mm (+0mm -0.05mm).

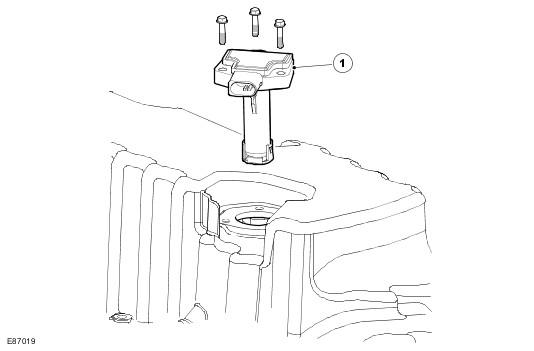

A combined oil level/temperature sensor is attached to the underside of the oil pan via 3 bolts. The tip of the sensor locates through an aperture and is sealed with an O-ring.
| Item Number | Description |
|---|---|
| 1 | Oil level/temperature sensor |
The engine oil drain plug is located on the exhaust side of the engine, towards the bottom of the oil pan.
