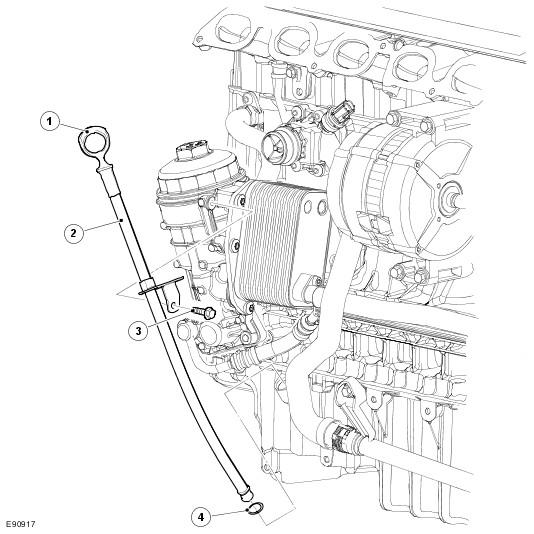

Oil Level Gage
| Item Number | Description |
|---|---|
| 1 | Oil level gage |
| 2 | Oil level gage tube |
| 3 | Bolt |
| 4 | O-ring seal |
The oil level gauge locates along the intake side of the engine and is supported in a tube installed in the oil pan. A bolt securely attaches the tube to the engine oil cooler via a bracket. Two holes in the end of the gauge indicate the minimum and maximum oil levels. The difference between the dipstick markings, minimum and maximum, corresponds to 0.8 liters.
