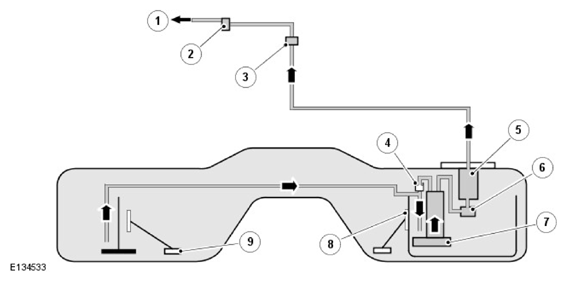

Fuel System Schematic Diagram
WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM |
DESCRIPTION |
| 1 |
To fuel rail |
| 2 |
High Pressure (HP) fuel pump |
| 3 |
Low Pressure (LP) fuel pressure sensor |
| 4 |
Jet pump |
| 5 |
Fuel filter |
| 6 |
Pressure relief valve |
| 7 |
Fuel pump module assembly |
| 8 |
RH (right-hand) fuel level sensor |
| 9 |
LH (left-hand) fuel level sensor |
