Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Remove the rear wheel.
Refer to: Wheel and Tire

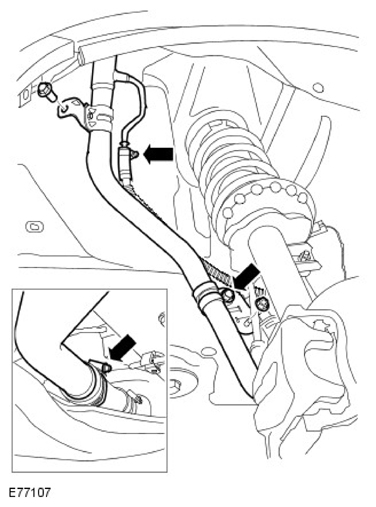

- Remove the nut and bolt securing the fuel tank filler pipe to the body.
  Torque Specification: 10 Nm

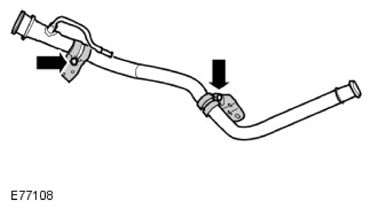

- Loosen the fuel tank filler pipe lower bracket.
  Torque Specification: 10 Nm
- Loosen the clip and disconnect the fuel filler hose from the fuel tank.

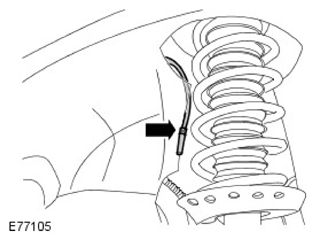

- Loosen the clip and disconnect fuel filler pipe vent hose.
Torque Specification: 10 Nm
