Fuel Tank (G1573663): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure that all openings are sealed. Use new blanking caps.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (General Information, Description and Operation).
Refer to: Fuel System Pressure Release - V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (Fuel System - General Information, General Procedures).
Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: Rear Subframe - V6 S/C 3.0L Petrol/V8 5.0L Petrol/V8 S/C 5.0L Petrol (Removal and Installation).
Refer to: Fuel Tank Draining - GTDi 2.0L Petrol/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Fuel System - General Information, General Procedures).
WARNING: The spilling of fuel is unavoidable during this operation. Make sure that all necessary precautions are taken to prevent fire and explosion.

CAUTION: Make sure that all openings are sealed. Use new blanking caps.
NOTE:

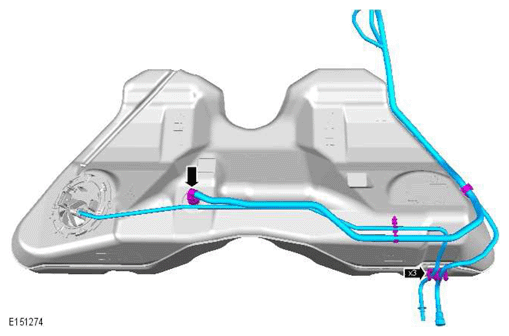

- With assistance remove the component.
- Some variation in the illustrations may occur, but the essential information is always correct.

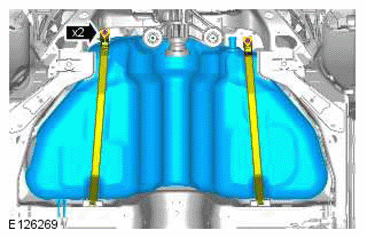

Torque Specification: 35 Nm
NOTE: Do not disassemble further if the component is removed for access only.
