Fuel Level Sensor (G1267367): Removal

WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. Refer to: Fuel Pump and Sensor Unit  (Removal and Installation).

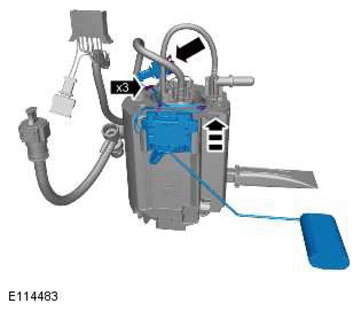

  3. G11424241
