Front Muffler (G1086744): Removal

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING:
    • Make sure to support the vehicle with axle stands.
    • Observe due care when working near a hot exhaust system.

    Raise and support the vehicle.

  2. Refer to: Engine Rear Undershield (Front End Body Panels, Removal and Installation).

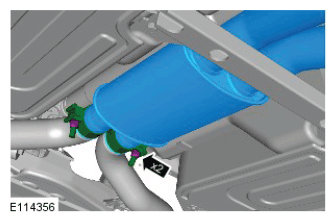

  3. G11423889

    Torque Specification: 55 Nm

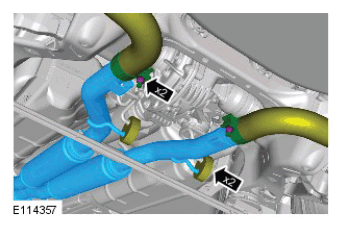

  4. G11423890

    Torque Specification: 55 Nm

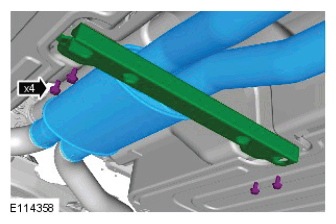

  5. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
    G11423891

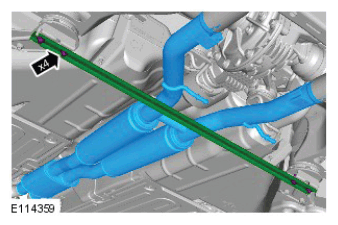

  6. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
    G11423892
