Exhaust Sound Enhancement Valve (G1086742): Removal
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe due care when working near a hot exhaust system.
NOTE:
- The exhaust sound enhancement valve is an integeral part of the muffler and cannot be serviced separately.
- Removal steps in this procedure may contain installation details.
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
-

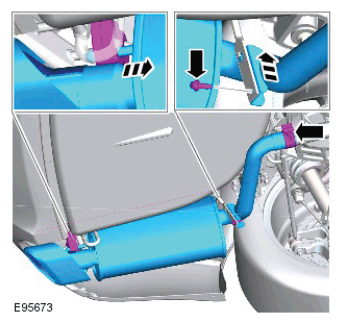

CAUTION: Make sure that these components are installed to the noted removal position.
Torque Specifications:
M8 25 Nm
M10 55 Nm
