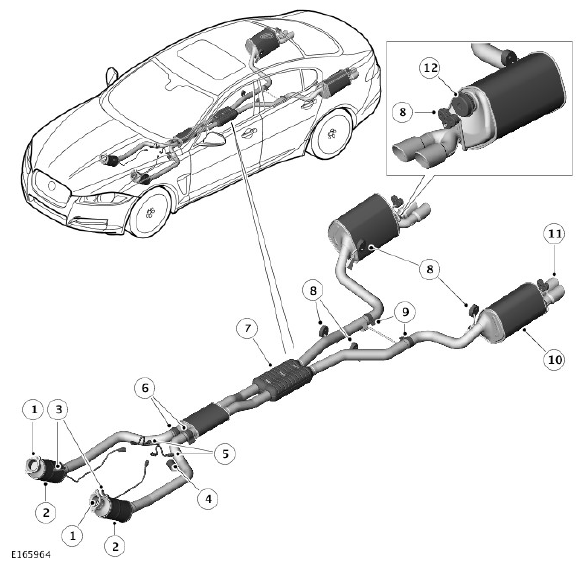

Component Location - 5.0L V8 Supercharger - From 2013MY
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Manifold flange (2 off) |
| 2 | Catalytic converter (2 off) |
| 3 | Mid catalyst Heated Oxygen Sensor (HO2S) (2 off) |
| 4 | Mass damper |
| 5 | Post catalyst HO2S (2 off) |
| 6 | Clamp (2 off) |
| 7 | Center resonator silencer |
| 8 | Mounting rubber (6 off) |
| 9 | Clamp (2 off) |
| 10 | Rear silencer (2 off) |
| 11 | Exhaust trim (2 off) |
| 12 | Semi-active muffler valve |
